Stereo Integrated Amplifier SU-G700M2

See product page

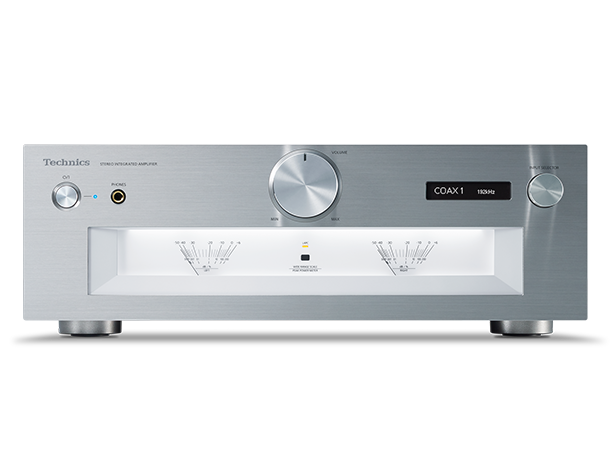

Photo of Stereo Integrated Amplifier SU-G700M2

Output Power

  • 70W + 70W ( 1kHz, T.H.D. 0.5 %, 8Ω, 20kHz LPF )
    140W + 140W ( 1kHz, T.H.D. 0.5 %, 4Ω, 20kHz LPF )

Load Impedance

  • 4Ω-16Ω

Frequency Response

  • PHONO (MM)

    • 20Hz - 20kHz ( RIAA DEVIATION ±1dB, 8Ω )

  • PHONO (MC)

    • 20Hz - 20kHz ( RIAA DEVIATION ±1dB, 8Ω )

  • LINE

    • 5Hz - 80kHz ( -3dB, 8Ω )

  • DIGITAL

    • 5Hz - 80kHz ( -3dB, 8Ω )

Input Sensitivity / Input Impedance

  • PHONO (MM)

    • 2.5 mV / 47 kΩ

  • PHONO (MC)

    • 300 uV /100 Ω

  • LINE

    • 200 mV / 22 kΩ

Analogue Input Terminal

  • LINE x 2 (LINE1, LINE2 / MAIN IN)
    PHONO (MM/MC) x1

Digital Input Terminal

  • Optical digital x2 (OPT 1, OPT 2)
    Coaxial digital x2 (COAX 1, COAX 2)
    USB-B x1 (PC)

Analogue Output Terminal

  • LINE OUT x1　(LINE OUT)
    PRE OUT x1 (PRE OUT)

Headphone Output

  • Yes, Stereo Φ6.3 mm

PC(USB-B)

  • USB 2.0 high-speed
    USB Audio Class 2.0, Asynchronous mode

Support Codec

  • PCM Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
    DSD Yes (2.8 MHz, 5.6 MHz, 11.2 MHz)

DSD contol mode

  • ASIO Native mode, DoP mode

Power Supply

  • AC 120 V ,60 Hz

Power Consumption

  • 95W

Dimensions (W x H x D)

  • 430 mm × 148 mm × 428 mm
    16-15/16 x 5-13/16 x 16-27/32 inch

Weight

  • Approx. 12.7 kg
    Approx. 28 lbs

Accessories

  • AC Cord, Remote Control, Batteries for Remote Control, Owner's Manual
