Direct Drive Turntable SP-10R

See product page

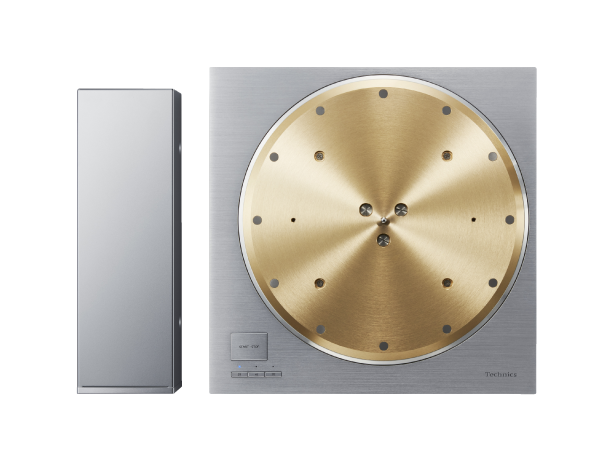

Photo of Direct Drive Turntable SP-10R

Turntable section

  • Drive Method

    • Direct Drive

  • Motor

    • Brushless DC motor

  • Turntable Speeds

    • 33 1/3, 45, 78 rpm

  • Adjust Range

    • ±16 %

  • Starting Torque

    • 0.39 N・m / 4.0 kg･cm (3.47 lb-in)

  • Wow And Flutter

    • 0.015 % W.R.M.S.

  • Turntable Platter

    • Brass and aluminium diecast combined
      Diameter : 323 mm (12-23/32")
      Weight : Approx. 7.9 kg (17.5 lbs)　(including turntable mat)

General

  • Power Supply

    • AC 110 - 240 V, 50 / 60 Hz

  • Power Consumption

    • 10 W
      Approx. 0.05 W (Standby)

  • Dimensions (W x H x D)

    • Main Unit
      365 x 109 x 365 mm (14-3/8 × 4-5/16 × 14-3/8 inch)
      Control Unit
      110 x 84 x 350 mm (4-11/32 × 3-5/16 × 13-25/32 inch)

  • Weight

    • Main Unit Approx. 18.2 kg (40.2 lbs)
      Control Unit Approx. 2.1 kg (4.7 lbs)

  • Operating Temperature Range

    • 0° to +40° (32°F to +104°F)

  • Operating Humidity Range

    • 35 % to 80 % RH (no condensation)

  • Accessories

    • Turntable, Turntable mat, EP record adaptor, Screw set for turntable, Detachable handle, Hex wrench, AC main lead, Owner's manual
