Netværk / Super Audio CD-afspiller SL-G700

Tilbage til produktsiden

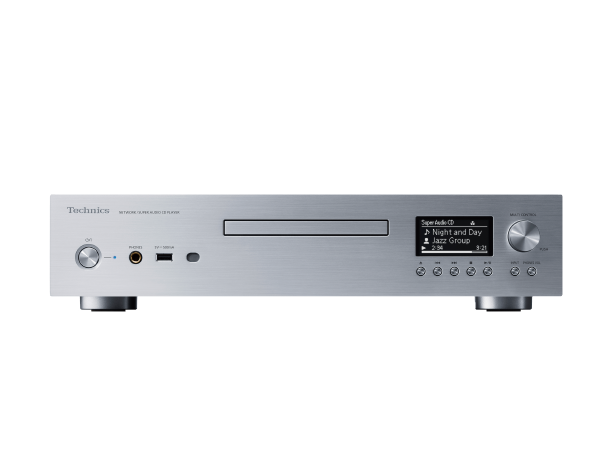

Foto af Netværk / Super Audio CD-afspiller SL-G700

Grand Class high quality sound

  • Premium High-grade D/A Converter AK4497, and Dual Mono Construction D/A Circuit, Variable Analog Audio Output
    Discrete AMP Module
    Battery Driven Clock Generator
    High-speed Silent Hybrid Power Supply
    Digital Noise Isolation Architecture
    Supports Higher Grade Headphone Connection with Integrated Class AA Headphone AMP
    Pure Disc Playback Mode for SACD/CD Playback for Greater Sound Purity
    High-Res Re-master

High-quality Technics Design

  • Four-Section Configuration
    High-Rigidity Chassis and Aluminium Die-cast Disc Tray – High-Stability SACD Mechanism
    7mm Thick Aluminium Plate Used for the Front Panel
    Control Port for System Control with SU-G700

Disc Compatibility

  • Super Audio CD (2 ch area only), CD, CD-R, CD-RW

Disc Format

  • Super Audio CD, CD-DA

Frequency Response

  • Super Audio CD: 2 Hz to 50 kHz (-3 dB) / CD: 2Hz to 20 kHz (-3 dB)

Dynamic Range (IHF-A)

  • Super Audio CD: BALANCED: 118dB (IHF-A) / UNBALANCED: 115dB (IHF-A)
    CD: BALANCED: 98dB (IHF-A) / UNBALANCED: 98dB (IHF-A)

Signal to Noise Ratio (IHF-A)

  • BALANCED: 121 dB (IHF-A) / UNBALANCED: 118 dB (IHF-A)

THD+N

  • Super Audio CD: 0.0006% (1 kHz, 0 dB) / CD: 0.0015% (1 kHz, 0 dB)

Digital Input Termina

  • Coaxial Digital x 1, Optical Digital x 1, USB-A x 2

Analogue Output Terminal

  • BALANCED x 1, UNBALANCED x 1
    Support Variable Level Output

Digital output Terminal

  • Coaxial Digital x 1, Optical Digital x 1

System Port

  • System Control Input / Output (Φ3.5 mm Jack)

Headphone Output

  • Yes(Φ6.3 mm, 110 mV, 32 Ω VOL MAX))

USB-A Support Codec

  • WAV

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)

  • FLAC

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)

  • DSD

    • Yes (2.8 MHz, 5.6 MHz, 11.2MHz)

  • AIFF

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)

  • ALAC

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)

  • AAC

    • Yes (32, 44.1, 48, 88.2, 96 kHz / 16-320 kbps)

  • MP3

    • Yes (32, 44.1, 48 kHz / 16-320 kbps)

Network Playback Support Codec

  • WAV

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)

  • FLAC

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)

  • DSD

    • Yes (2.8 MHz, 5.6 MHz, 11.2 MHz)

  • AIFF

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)

  • ALAC

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)

  • AAC

    • Yes (32, 44.1, 48, 88.2, 96 kHz / 16-320 kbps)

  • MP3

    • Yes (32, 44.1, 48 kHz / 16-320 kbps)

Ethernet Interface

  • LAN (100 Base-TX / 10 Base-T)

Wi-Fi

  • IEEE 802.11 a/b/g/n/ac, 2.4 GHz / 5 GHz Band

Bluetooth(Support codec)

  • Yes (AAC, SBC)

Power Supply

  • AC 220-240 V, 50 Hz / 60 Hz

Power Consumption

  • 38W

Dimensions (W x H x D)

  • 430 x 98 x 407 mm

Weight

  • Approx. 12.2 kg

Accessories

  • Remote Control, AC Cord, System Connection Cable, Analogue Audio cable, Operating Instructions
