Højttalersystem SB-G90

Tilbage til produktsiden

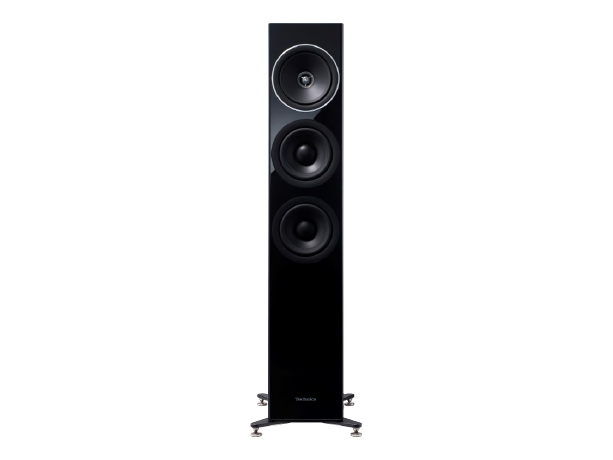

Foto af Højttalersystem SB-G90

Emotive Acoustic Technology

  • Point Sound Source Speaker System
    Wide Range & Low Distortion Reproduction
    Phase Precision Driver (Coaxial 2-way Speaker Unit)
    16-cm Low Distortion Long Stroke Woofer
    High-quality Network Circuit
    Balanced Driver Mounting Architecture (BDMA)
    High-rigidity Cabinet

Technics Definitive Design

  • Black High Gloss Finish
    Magnet Fixed Fabric Grille

Type

  • 3-way 4-speaker Bass Reflex (including 2-way coaxial cone units for mid-range and tweeter)

Speaker Units

  • Woofer: 16 cm (6½") Cone type x 2
    Midrange / Tweeter: Coaxial, 16 cm (6½")
    Cone type x 1 and 2.5 cm (1") Dome type x 1

Crossover Frequencies

  • 480 Hz, 3.2 kHz

Frequency Range

  • 27 Hz - 100 kHz (-16 dB), 32 Hz - 85 kHz (-10 dB)

Sound Pressure Level

  • 88 dB /2.83 V (m)

Impedance

  • 4 Ω

Input Power (IEC)

  • 100 W (Rated), 200 W (Max)

Recommended Amp Power

  • 40 - 200 W (Speaker tested by IEC60268-5 Short Term Max Test)

Dimensions (W x H x D)

  • 302 x 1114 x 375 mm (including fabric grille, terminals and spikes)

Weight (per unit)

  • Approx. 32 kg

Accessories

  • Spike x 4, Spike shoe x 4, Spacer x 4, Base plate x 4, Base plate screw x 12, Rubber foot x 4, Operating Instructions x 1, Speaker net x 1, Cleaning cloth x 1
