Højttalersystem SB-G90M2

Tilbage til produktsiden

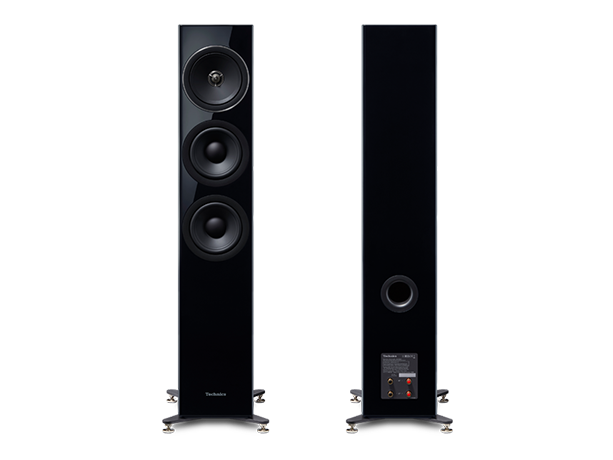

Foto af Højttalersystem SB-G90M2

Type

  • 3-way 4-speaker Bass Reflex (coaxial 2-way midrange/built-in tweeters)

Speaker Units

  • Woofer

    • 16 cm (6½") Cone type x 2

  • Midrange / Tweeter

    • 16 cm (6½") Cone type x 1 / 2.5 cm (1") Dome type x 1

Impedance

  • 4Ω

Input Power (IEC)

  • 100 W (Rated), 200 W (Max)

Recommended Amp Power

  • 40 - 200 W (Speaker tested by IEC60268-5 Short Term Max Test)

Sound Pressure Level

  • 86 dB / 2.83 V (m)
    83 dB / W(m)

Frequency Range

  • 33Hz - 90kHz (-10dB)

Crossover Frequencies

  • 500Hz, 3.4kHz

Dimensions (W x H x D)

  • 292 mm × 1114 mm × 366 mm (including spikes)

Weight (per unit)

  • Approx. 35 kg

Accessories

  • Spike x 4, Spike shoe x 4, Spacer x 4, Base plate x 4, Base plate screw x 12, Rubber foot x 4, Short wieres x 2, Speaker net x 1, Cleaning cloth x 1, Owner's Manual x 1,
