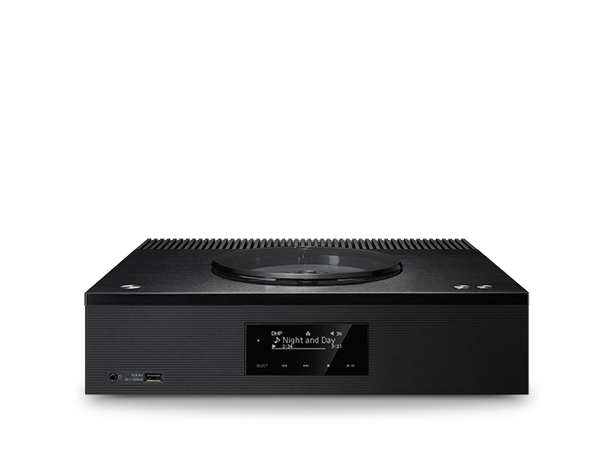

Netværks-CD-receiver SA-C100
Output Power
-
50 W + 50 W (1kHz, T.H.D. 1.0 %, 4Ω, 20kHz LPF)
Load Impedance
-
4Ω-16Ω
Frequency Response
-
PHONO (MM)
-
20Hz - 20kHz ( RIAA DEVIATION ±1dB, 8Ω )
-
-
LINE
-
20Hz - 80kHz ( -3dB, 8Ω )
-
-
DIGITAL
-
20Hz - 90kHz ( -3dB, 8Ω )
-
Input Sensitivity / Input Impedance
-
PHONO (MM)
-
2.5 mV / 47 kΩ
-
-
LINE
-
200 mV / 22 kΩ
-
Analogue Input Terminal
-
LINE x 1
PHONO (MM) x1
Digital Input Terminal
-
Optical digital x1
Coaxial digital x1
USB-A x1
Analogue Output Terminal
-
Sub Woofer x1
Headphone Output
-
Yes, Stereo Φ3.5 mm
Disc Compatibility
-
Audio CD, CD-R/CD-RW
(CD-DA, Discs recorded and finalized on recording devices)
USB-A
-
iPod/iPhone/iPad
-
No
-
-
Support Codec
-
WAV
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
-
-
FLAC
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
-
-
DSD
-
Yes (2.8 MHz, 5.6 MHz, 11.2 MHz)
-
-
AIFF
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
-
-
ALAC
-
Yes(32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
-
-
AAC
-
Yes (32, 44.1, 48, 88.2, 96 kHz/16-320kbps)
-
-
MP3
-
Yes (32, 44.1, 48 kHz / 16-320 kbps)
-
-
MQA Decorder
-
No
LAN(DMR)
-
WAV
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
-
-
FLAC
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
-
-
DSD
-
Yes (2.8 MHz, 5.6 MHz, 11.2 MHz)
-
-
AIFF
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
-
-
ALAC
-
Yes(32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
-
-
AAC
-
Yes (32, 44.1, 48, 88.2, 96 kHz/16-320kbps)
-
-
MP3
-
Yes (32, 44.1, 48 kHz / 16-320 kbps)
-
Ethernet Interface
-
LAN (100 Base-TX/10 Base-T)
Wi-Fi
-
IEEE 802.11 a/b/g/n/ac
2.4 GHz / 5 GHz Band
Google Cast™
-
Yes
AirPlay 2
-
Yes
Bluetooth® (Support codec)
-
Yes (AAC, SBC)
Tuner
-
DAB/DAB+/FM
Power Supply
-
AC 220 V - 240 V,50/60 Hz
Power Consumption
-
46W
Dimensions (W x H x D)
-
340 mm × 94 mm × 341 mm
Weight
-
Approx. 4.8 kg
Accessories
-
AC Cord, DAB Indoor Antena, Remote Control,
Batteries for Remote Control, Owner's Manual
