Otseajamiga vinüülplaadimängija SL-1210GR

Kuva tooteleht

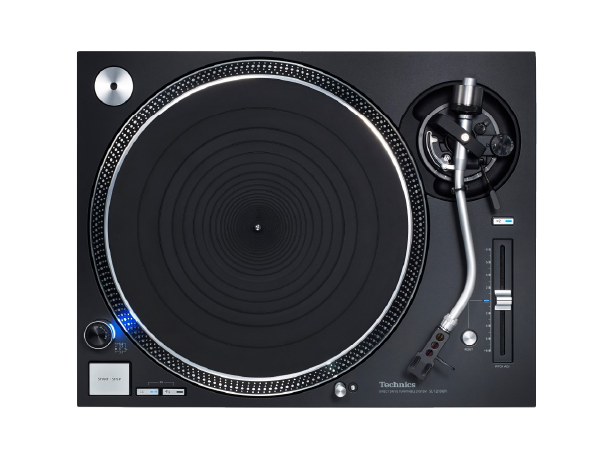

Foto Otseajamiga vinüülplaadimängija SL-1210GR

Turntable section

  • Type

    • Direct Drive Manual Turntable

  • Turntable Speeds

    • 33-1/3, 45 and 78 r/min

  • Adjust Range

    • ±8 %, ±16 %

  • Starting Torque

    • 2.2 kg-cm

  • Build-up Characteristics

    • 0.7 s. from Standstill to 33-1/3 r/min

  • Wow And Flutter

    • 0.025 % W.R.M.S.

  • Rumble

    • 78 dB (IEC 98A weighted)

  • Turntable Platter

    • Aluminium diecast
      Diameter : 332 mm
      Weight : Approx. 2.5 kg (Including rubber sheet)

Tonearm Section

  • Type

    • Universal Static Balance

  • Effective Length

    • 230 mm

  • Overhang

    • 15 mm

  • Tracking Error Angle

    • Within 2° 32' (at the outer groove of 30 cm record)
      Within 0° 32' (at the inner groove of 30 cm record)

  • Offset Angle

    • 22°

  • Arm-height Adjustment Range

    • 0 - 6 mm

  • Stylus Pressure Adjustment Range

    • 0 - 4 g (Direct Reading)

  • Head Shell Weight

    • Approx. 7.6 g

  • Applicable Cartridge Weight Range

    • (without auxiliary weight)
      5.6 - 12.0 g
      14.3 - 20.7 g (including head shell)
      (with auxiliary weight)
      10.0 - 16.4 g
      18.7 - 25.1 g (including head shell)

  • Cartridge Mounting Dimension

    • JIS 12.7 mm (1/2") interval

  • Head Shell Terminal Lug

    • 1.2 mmφ 4-pin terminal lug

Terminals

  • Audio Output

    • PHONO (Pin Jack) x 1, EARTH TERMINAL x 1

General

  • Power Supply

    • AC 110 - 240 V, 50 / 60 Hz

  • Power Consumption

    • 11 W Approx.
      0.2 W (Standby)

  • Dimensions (W x H x D)

    • 453 x 173 x 372 mm

  • Weight

    • Approx. 11.5 kg

  • Accessories

    • Turntable, Turntable sheet, Dust cover, EP record adaptor,Balance weight, Auxiliary weight, Head shell, Overhang gauge, Screw set for cartridge, PHONO cable, PHONO earth lead, AC power supply cord, Owner's Manual
