Juhtmevaba kõlarisüsteem HiFi SC-CX700

Kuva tooteleht

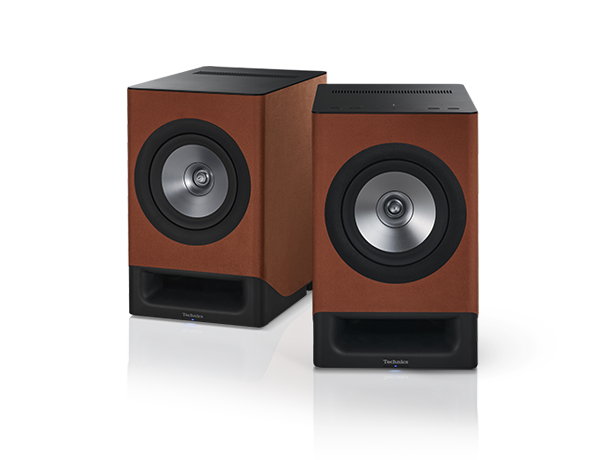

Foto Juhtmevaba kõlarisüsteem HiFi SC-CX700

General

  • Dimensions (W x H x D)

    • 201 x 313 x 276 mm (Primary)
      201 x 313 x 272 mm (Secondary)

  • Power Supply

    • AC 220-240V, 50/60Hz

  • Power Consumption

    • 40W (Primary)
      35W (Secondary)

  • Network Standby

    • Approx. 2.0W (Primary)
      Approx. 2.0W (Secondary)

  • Weight

    • Appx. 9.1 kg (Primary)
      Appx. 8.9 kg (Secondary)

Amplifier Section

  • Output Power

    • Total Output Power 200W (100W x2)
      100W : Woofer 60W
      Tweeter 40W

Speaker Section

  • Speaker Unit

    • 2-way 2-speaker Bass Reflex (Coaxial 2-way Woofer/built-in tweeters)
      Woofer : 15 cm Cone Type x1
      Tweeter : 1.9 cm Ring Type x1

Terminal

  • Analogue Input Terminal

    • PHONO(MM) x1 (Primary), AUX IN x1 (φ3.5mm) (Primary)

  • Digital Input Terminal

    • Optical Digital x1 (Primary), USB-C(USB-DAC) x1 (Primary)

  • Analog Output Terminal

    • Subwoofer Out x1 (Primary)

  • Digital Output Terminal

    • HDMI ARC x1 (Primary)

  • Headphone Output

    • N/A

  • Ethernet Interface

    • LAN

      • LAN (100 Base-TX / 10 Base-T) x1 (Primary)

    • P/S LINK

      • RJ-45 Connector x2(Primary, Secondary) *for wired connection

Wi-Fi Section

  • Wi-Fi

    • IEEE 802.11 a/b/g/n/ac/ax, 2.4 GHz / 5 GHz Band

Network

  • Google Cast

    • ○

  • Works with Google Assistant

    • ○

  • AirPlay

    • ○

  • Bluetooth®　(Support Codec)

    • ○ (AAC, SBC)

  • Internet Service

    • Spotify Connect, Deezer, Amazon Music HD, TIDAL, Qobuz, Internet Radio, Roon Ready(OTA)

  • CD

    • N/A

  • Tuner

    • N/A

Format

  • USB-C

    • USB Audio Class Specification

      • USB 2.0 High-speed
        USB Audio Class 2.0, Asynchronous mode

    • Support Codec

      • LPCM (32, 44.1, 48, 88.2, 96, 176.4, 192kHz / 16, 24bit)
        DSD (2.8MHz, 5.6MHz)

    • DSD control mode

      • ASIO Native mode, DoP mode

  • LAN(DMR)

    • Support Codec

      • WAV (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32bit)
        FLAC (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384kHz / 16, 24bit)
        AIFF (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384kHz / 16, 24, 32 bit)
        ALAC (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384kHz / 16, 24bit)
        AAC (32, 44.1, 48, 88.2, 96kHz / 16-320kbps)
        MP3 (32, 44.1, 48kHz / 16-320kbps)
        DSD (2.8MHz, 5.6MHz, 11.2MHz)

Speaker Connection

  • Format

    • Wireless Connection

      • PCM 96kHz / 24bit

    • Wireld Connection

      • PCM 192kHz / 24bit

Accessories

  • Accessories

    • AC Cord x2, Remote Control x1, Batteries for Remote Control, Speaker Link cable(3m) x1, Speaker nets x2, Owner's Manual
