Otseajamiga vinüülplaadimängija SL-1500C

Kuva tooteleht

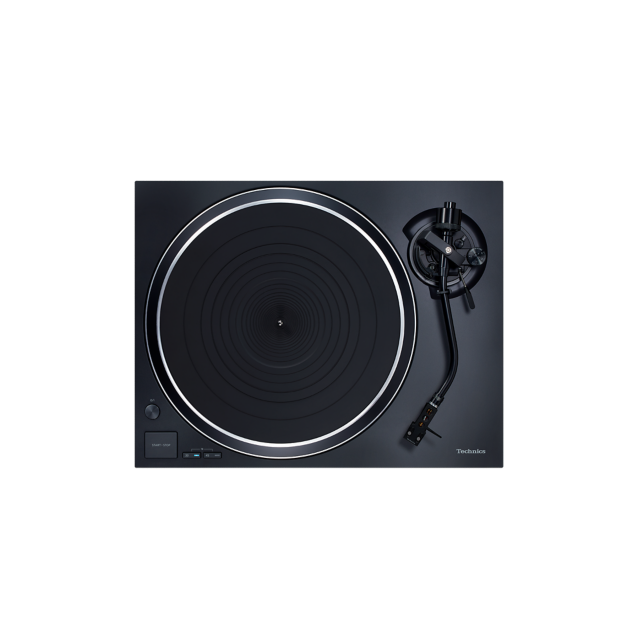

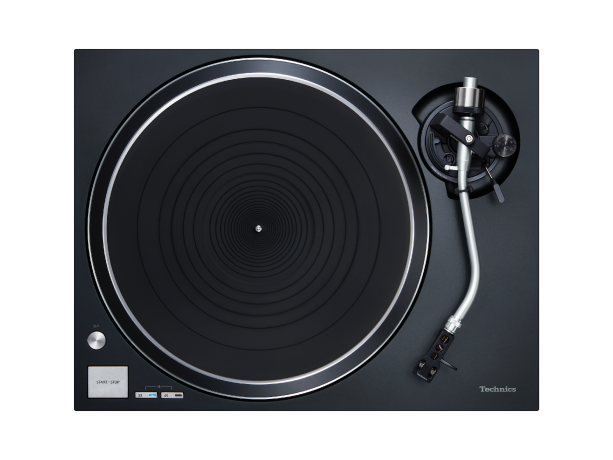

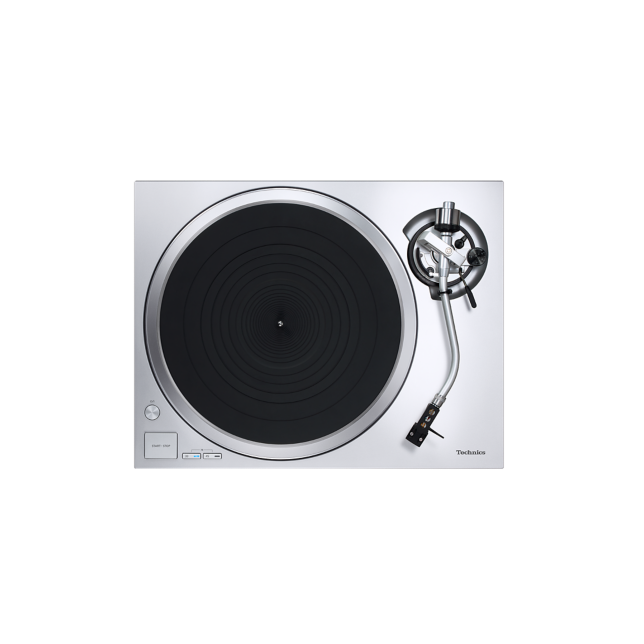

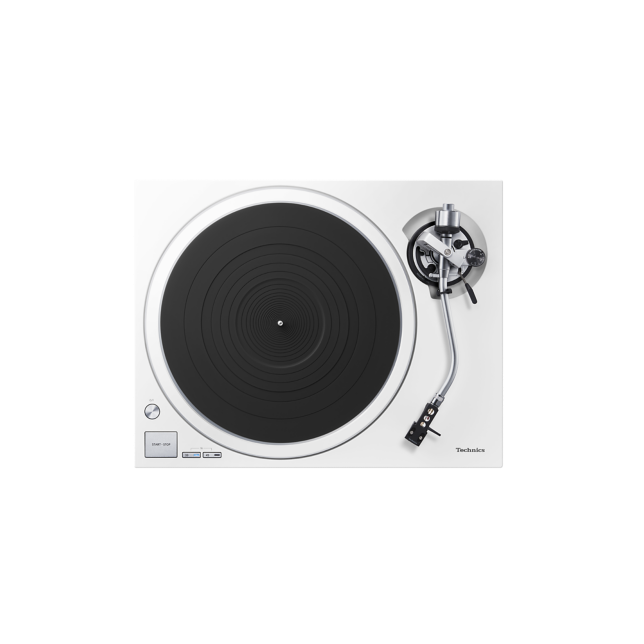

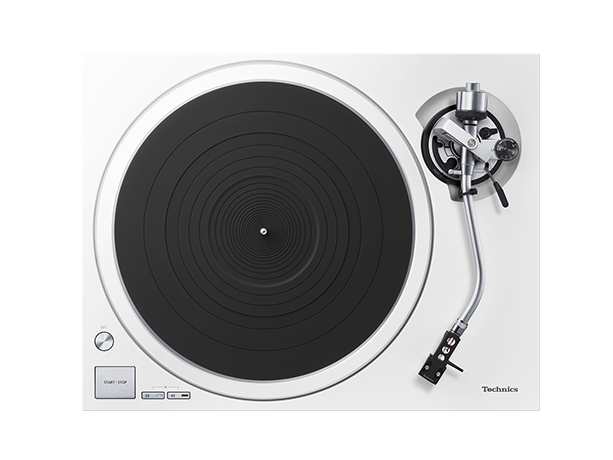

Foto Otseajamiga vinüülplaadimängija SL-1500C

Turntable section

  • Type

    • Direct Drive Manual Turntable

  • Turntable Speeds

    • 33-1/3, 45 and 78 r/min

  • Starting Torque

    • 0.18 N・m / 1.8 kg･cm

  • Build-up Characteristics

    • 0.7 s. from standstill to 33 1/3 rpm

  • Wow And Flutter

    • 0.025 % W.R.M.S.

  • Turntable Platter

    • Aluminium diecast
      Diameter : 332 mm
      Weight : Approx. 2.0 kg (Including rubber sheet)

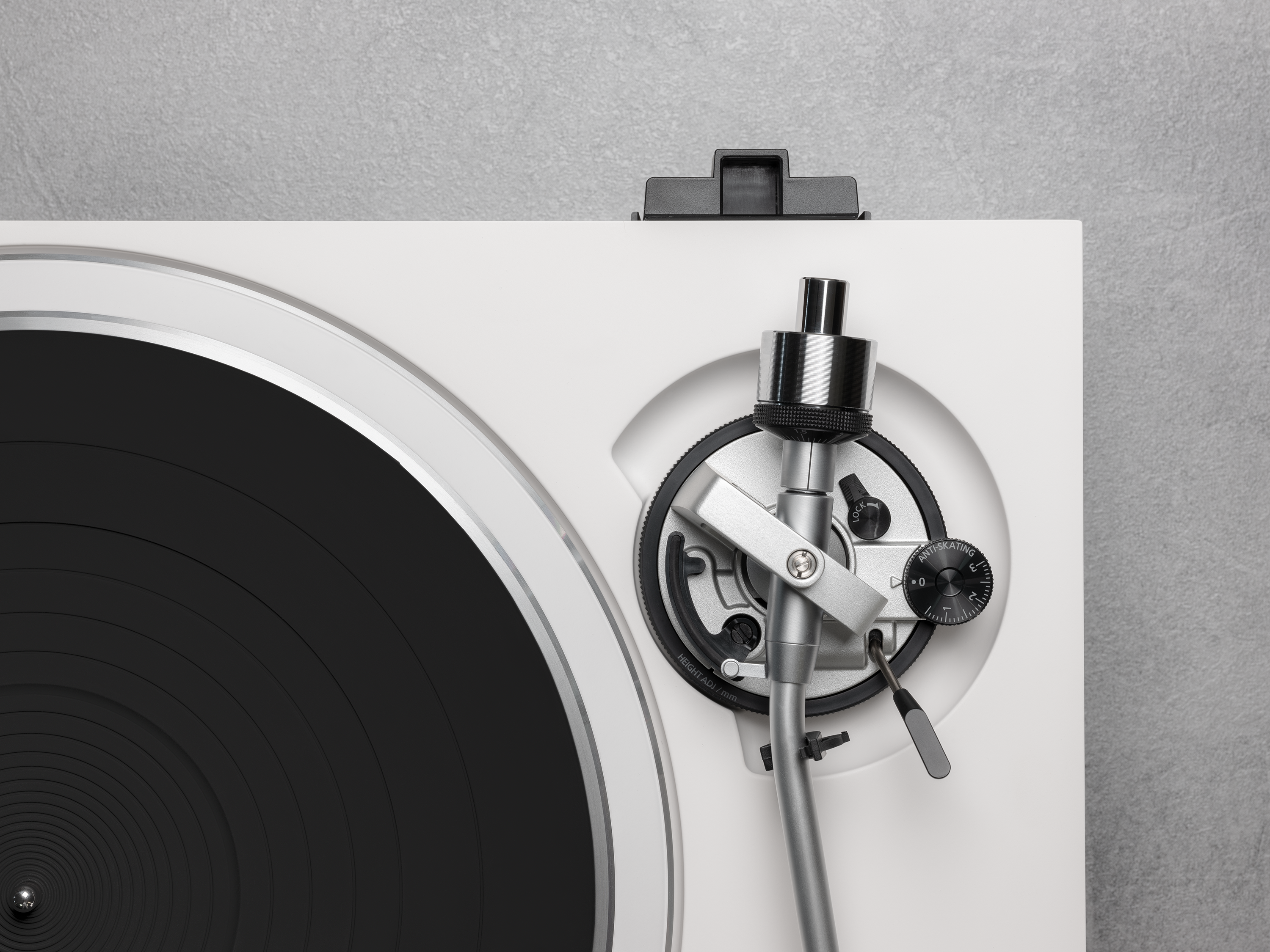

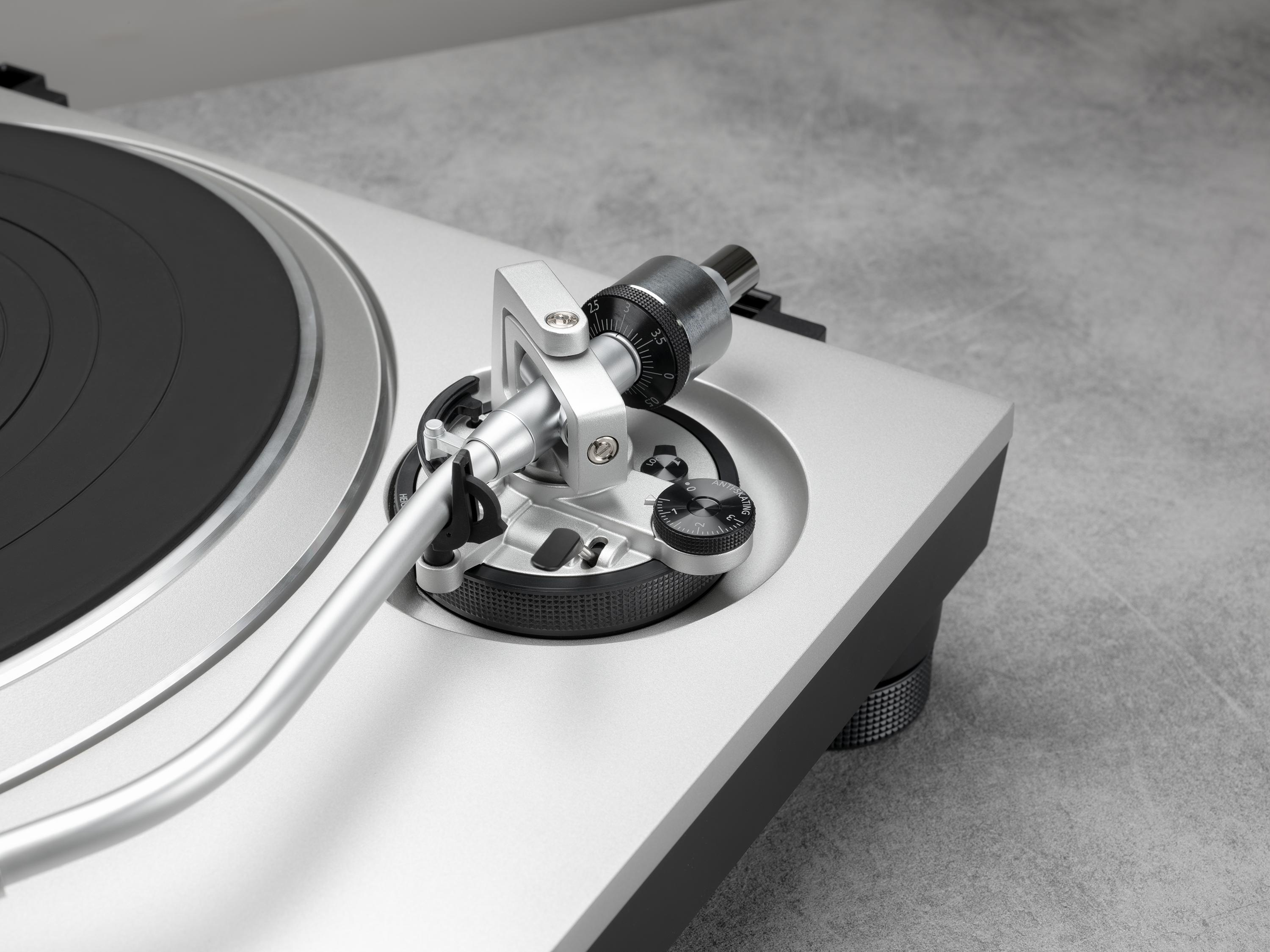

Tonearm Section

  • Type

    • Universal Static Balance

  • Effective Length

    • 230 mm

  • Overhang

    • 15 mm

  • Tracking Error Angle

    • Within 2° 32'　(at the outer groove of 30 cm (12") record)
      Within 0° 32'　(at the inner groove of 30 cm (12") record)

  • Applicable Cartridge Weight Range

    • (without auxiliary weight)
      5.6 - 12.0 g
      14.3 - 20.7 g (including head shell)
      (with auxiliary weight)
      10.0 - 16.4 g
      18.7 - 25.1 g (including head shell)

  • Head Shell Terminal Lug

    • 1.2 mmφ 4-pin terminal lug

Terminals

  • Audio Output

    • PHONO (Pin Jack) x 1
      EARTH TERMINAL x 1
      LINE (Pin Jack) x 1

General

  • Power Supply

    • AC 110 - 240 V, 50 / 60 Hz

  • Power Consumption

    • 8 W
      Approx. 0.2W (Standby)

  • Dimensions (W x H x D)

    • 453 x 169 x 372 mm

  • Weight

    • Approx. 9.9 kg

  • Accessories

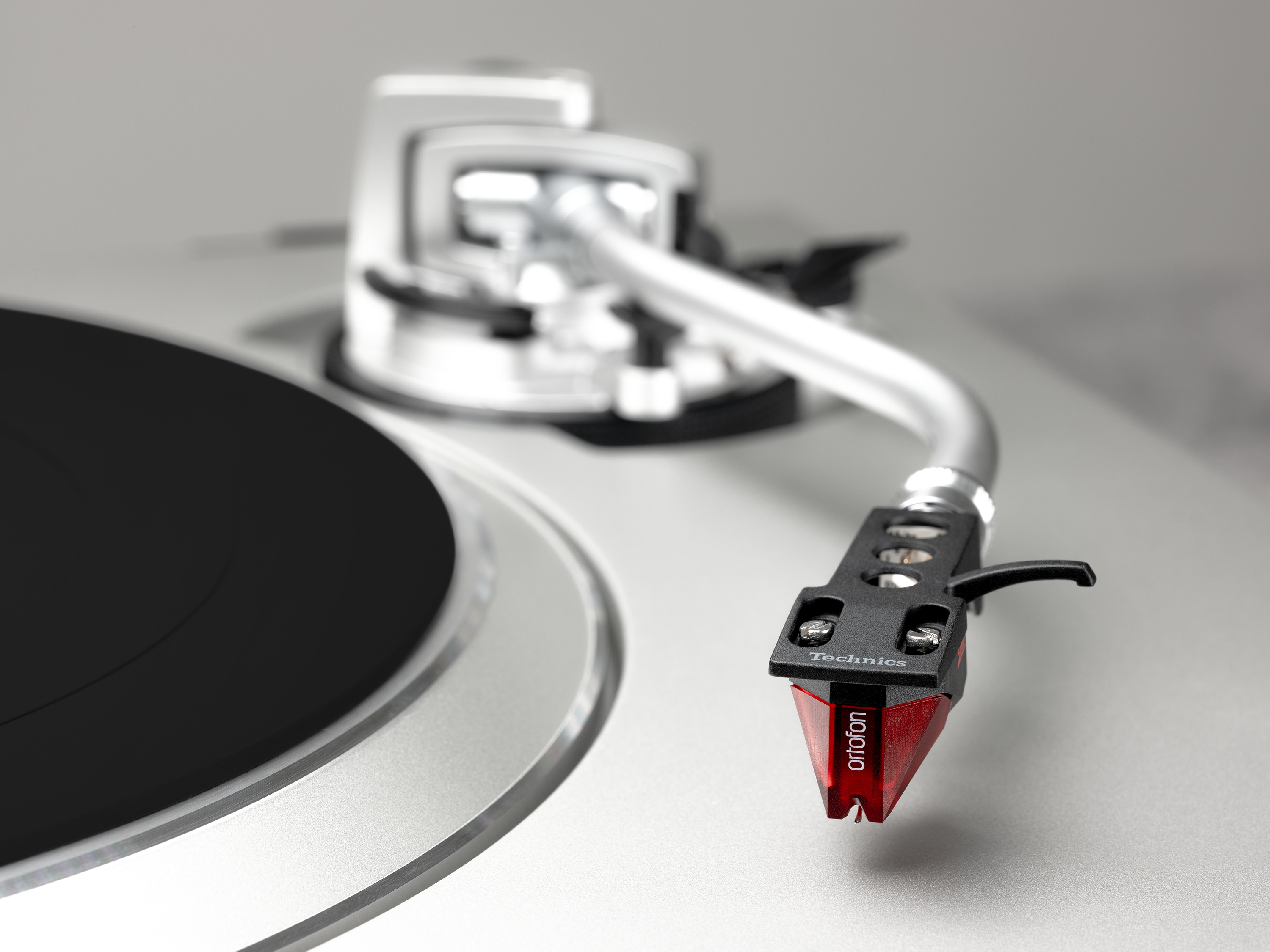

    • Turntable, Turntable sheet, Dust cover, EP record adaptor, Balance weight, Auxiliary weight, Head shell, Cartridge(ortofon 2M Red), PHONO cable, PHONO earth lead, AC power supply cord, Owner's Manual
