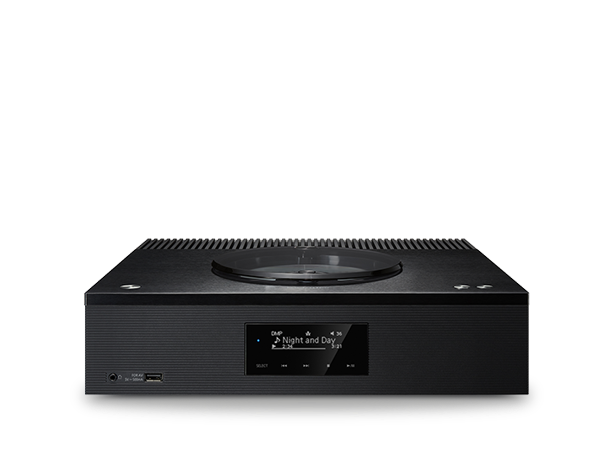

Network CD Receiver SA-C100

Takaisin tuotesivulle
Valokuva Network CD Receiver SA-C100 kamerasta

Output Power

  • 50 W + 50 W (1kHz, T.H.D. 1.0 %, 4Ω, 20kHz LPF)

Load Impedance

  • 4Ω-16Ω

Frequency Response

  • PHONO (MM)

    • 20Hz - 20kHz ( RIAA DEVIATION ±1dB, 8Ω )

  • LINE

    • 20Hz - 80kHz ( -3dB, 8Ω )

  • DIGITAL

    • 20Hz - 90kHz ( -3dB, 8Ω )

Input Sensitivity / Input Impedance

  • PHONO (MM)

    • 2.5 mV / 47 kΩ

  • LINE

    • 200 mV / 22 kΩ

Analogue Input Terminal

  • LINE x 1
    PHONO (MM) x1

Digital Input Terminal

  • Optical digital x1
    Coaxial digital x1
    USB-A x1

Analogue Output Terminal

  • Sub Woofer x1

Headphone Output

  • Yes, Stereo Φ3.5 mm

Disc Compatibility

  • Audio CD, CD-R/CD-RW
    (CD-DA, Discs recorded and finalized on recording devices)

USB-A

  • iPod/iPhone/iPad

    • No

  • Support Codec

    • WAV

      • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)

    • FLAC

      • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)

    • DSD

      • Yes (2.8 MHz, 5.6 MHz, 11.2 MHz)

    • AIFF

      • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)

    • ALAC

      • Yes(32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)

    • AAC

      • Yes (32, 44.1, 48, 88.2, 96 kHz/16-320kbps)

    • MP3

      • Yes (32, 44.1, 48 kHz / 16-320 kbps)

MQA Decorder

  • No

LAN(DMR)

  • WAV

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)

  • FLAC

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)

  • DSD

    • Yes (2.8 MHz, 5.6 MHz, 11.2 MHz)

  • AIFF

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)

  • ALAC

    • Yes(32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)

  • AAC

    • Yes (32, 44.1, 48, 88.2, 96 kHz/16-320kbps)

  • MP3

    • Yes (32, 44.1, 48 kHz / 16-320 kbps)

Ethernet Interface

  • LAN (100 Base-TX/10 Base-T)

Wi-Fi

  • IEEE 802.11 a/b/g/n/ac
    2.4 GHz / 5 GHz Band

Google Cast™

  • Yes

AirPlay 2

  • Yes

Bluetooth® (Support codec)

  • Yes (AAC, SBC)

Tuner

  • DAB/DAB+/FM

Power Supply

  • AC 220 V - 240 V,50/60 Hz

Power Consumption

  • 46W

Dimensions (W x H x D)

  • 340 mm × 94 mm × 341 mm

Weight

  • Approx. 4.8 kg

Accessories

  • AC Cord, DAB Indoor Antena, Remote Control,
    Batteries for Remote Control, Owner's Manual
