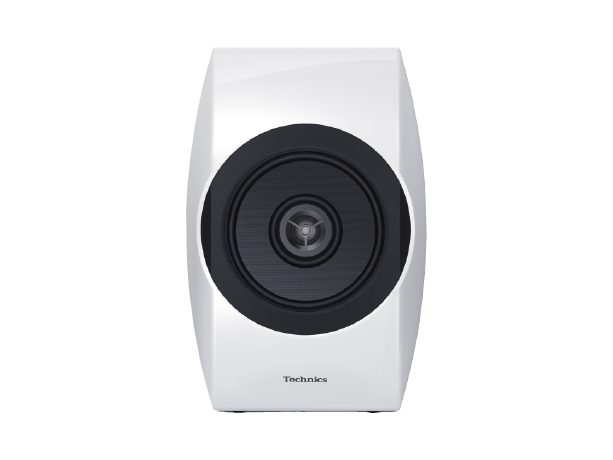

Luidsprekersysteem SB-C700
Emotive Acoustic Technology
-
Point-Sound-Source Luidsprekersysteem
Ultra Wide Range Reproduction
Phase Precision Driver (Coaxial Flat 2-way Speaker Unit)
High-quality Network Circuit
High Rigidity Entasis Form Cabinet
Technics Definitive Design
-
White High Gloss Finish
Entasis Form Enclosure
Magnet Fixed Fabric Grille
Type
-
Coaxial 2-way 2 Speaker Bass Reflex
Speaker Unit
-
Woofer / Tweeter:
Coaxial 16-cm Flat Type x 1 / 1.9-cm Dome type x 1
Crossover Frequency
-
2.5 kHz
Frequency Range
-
40 Hz - 100 kHz (-16 dB), 45 Hz - 80 kHz (-10 dB)
Sound pressure level
-
85 dB / 2.83 V (m)
Impedance
-
4 Ω
Input Power (IEC)
-
50 W (Rated), 100 W (Max)
Dimensions (W x H x D)
-
220 x 336 x 286 mm (including net and terminals)
Weight
-
Approx. 8.5 kg (/pc)
Accessories
-
Speaker Cable (1.2 m) x 2 *1, Operating Instructions
*1 Length of the speaker cable may not be sufficient on your placement. Please prepare suitable cable based on your installation requirements.
