Stereo Geïntegreerde Versterker SU-C700

See product page

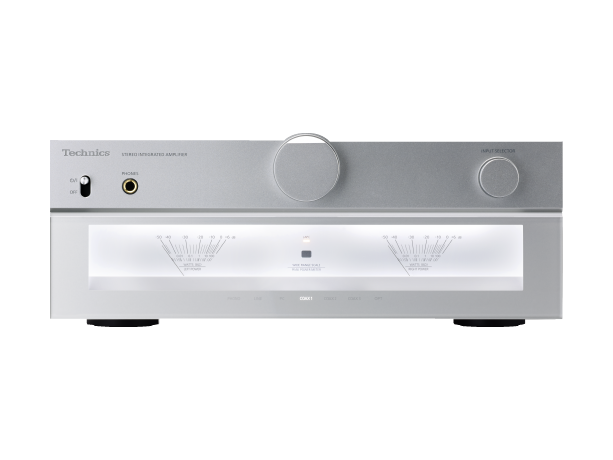

Foto van Stereo Geïntegreerde Versterker SU-C700

Accurate digitale technologie

  • JENO Engine
    (Jitter Elimination and Noise-shaping Optimization)
    Load Adaptive Phase Calibration
    High-speed Silent Linear power supply
    Battery Driven Clock Generator
    High Rigidity Metal Double Chassis

Technics Definitive Design

  • High Rigidity Aluminium Cabinet
    White LED Illuminated Large Level Meter
    Symmetric Structure

Uitgangsvermogen

  • 45 W + 45 W (1 kHz, T.H.D. 0.3%, 8 Ω, 20 kHz LPF)
    70 W + 70 W (1 kHz, T.H.D. 0.5%, 4 Ω, 20 kHz LPF)

Ingangsgevoeligheid / Ingangsimpedantie

  • LINE 200 mV / 22 kΩ, PHONO (MM) 2.5 mV/47 kΩ

Frequency Response

  • LINE 20 Hz - 80 kHz (-3 dB, 8 Ω), PHONO(MM)
    20 Hz - 20 kHz (RIAA DEVIATION ±1 dB, 8 Ω),
    COAXIAL1/2/3, 20 Hz - 90 kHz (- 3 dB, 8 Ω)

Belastingsimpedantie

  • 4-16 Ω

Analogue Input Terminal

  • LINE x 1, PHONO(MM) x 1

DLNA Support Codec

  • Coaxial Digital x 3, Optical Digital, USB-B

USB-DAC (USB-B)

  • USB Audio Class Specification

    • USB Audio Class 2.0, Asynchronous Mode

  • Support Codec

    • DSC

      • Yes (2.8224 MHz, 5.6448 MHz)

    • PCM

      • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24, 32 bit)

Headphone Output

  • Yes

System Port

  • System Control Input/Output (Φ3.5 mm Jack)

Power Supply

  • AC220-240 V, 50 Hz/60 Hz

Power Consumption

  • 73 W

Dimensions (W x H x D)

  • 340 x 132 x 325 mm

Weight

  • Approx. 8.3 kg

Accessories

  • Remote Control, AC Cord, Operating Instructions

Opmerking

  • "Direct Stream Digital", DSD and their logos are trademarks of Sony Corporation.
