Direktedrevet platespiller SL-1000R

Tilbake til produktsiden

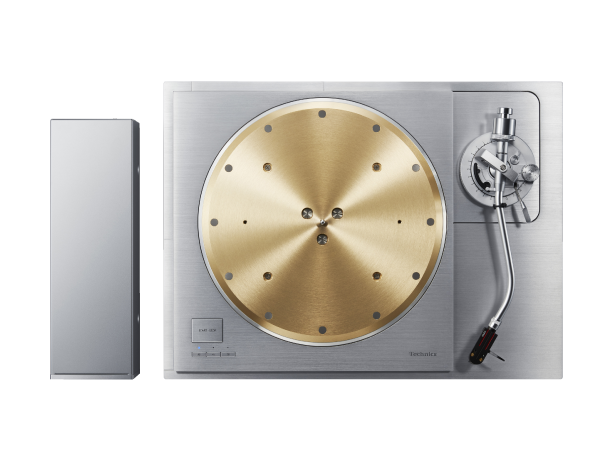

Foto av Direktedrevet platespiller SL-1000R

Turntable section

  • Drive Method

    • Direct Drive

  • Motor

    • Brushless DC motor

  • Turntable Speeds

    • 33 1/3, 45, 78 rpm

  • Adjust Range

    • ±16 %

  • Starting Torque

    • 0.39 N・m / 4.0 kg･cm

  • Wow And Flutter

    • 0.015 % W.R.M.S.

  • Turntable Platter

    • Brass and aluminium diecast combined
      Diameter : 323 mm
      Weight : Approx. 7.9 kg (including turntable mat)

Tonearm Section

  • Type

    • Universal Static Balance

  • Effective Length

    • From the tonearm pivot to the stylus : 254mm
      From the tonearm pivot to the spindle : 239mm

  • Overhang

    • 15 mm

  • Tracking Error Angle

    • Within 1° 48' (at the outer groove of 30 cm (12") record)
      Within 0° 30' (at the inner groove of 30 cm (12") record)

  • Offset Angle

    • 21°

  • Arm Height Adjustment Range

    • 0 - 15 mm

  • Stylus Pressure Adjustment Range

    • 0 - 4 g (Direct Reading)

  • Applicable Cartridge Weight Range (including Headshell)

    • 15.9 - 19.7 g (without auxiliary weight)
      18.8 - 23.6 g (with small auxiliary weight)
      22.5 - 26.3 g (with middle auxiliary weight)
      26.0 - 31.0 g (with large auxiliary weight)

Terminals

  • Audio Output

    • PHONO (Din Jack) x 1 *Straight Type Cable Only

General

  • Power Supply

    • AC 110 - 240 V, 50 / 60 Hz

  • Power Consumption

    • 10 W
      Approx. 0.05 W (Standby)

  • Dimensions (W x H x D)

    • Main Unit 531 x 188 x 399 mm
      Control Unit 110 x 84 x 350 mm

  • Weight

    • Main Unit Approx. 40.2 kg
      Control Unit Approx. 2.1 kg

  • Operating Temperature Range

    • 0° to +40°

  • Operating Humidity Range

    • 35 % to 80 % RH (no condensation)

  • Accessories

    • Turntable, Turntable mat, EP record adaptor, Balance weight, Auxiliary weight(Small)(Middle)(Large), Overhang gauge, Screw set for turntable, Detachable handle, Hex wrench, Insulator attachment, Dust cover, AC main leads, Owner's manual
