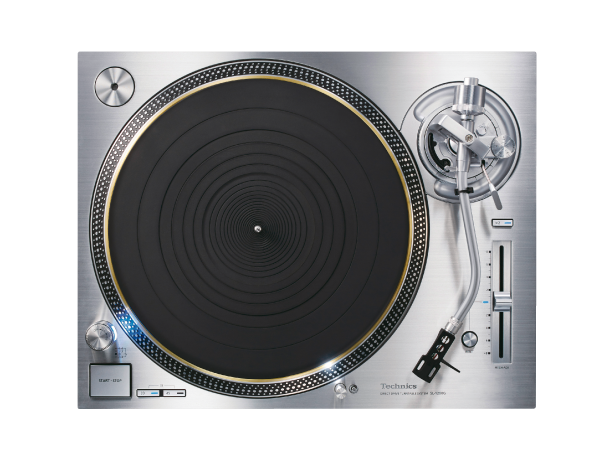

Direktdriven skivspelare SL-1200G
![Foto av Direktdriven skivspelare SL-1200G](/content/dam/pim/se/sv/SL/SL-120/SL-1200G/ast-1243015.png.pub.png)
Turntable section
-
Type
-
Direktdriven skivtallrik (manuellt)
-
-
Turntable Speeds
-
33-1/3, 45 och 78 v/ min
-
-
Adjust Range
-
±8 % och ±16 %
-
-
Starting Torque
-
3,3 kg-cm
-
-
Build-up Characteristics
-
0,7 s. från stillastående till 33-1/3 v/min
-
-
Wow And Flutter
-
0,025 % W.R.M.S. (JIS C5521)
-
-
Rumble
-
78 dB (IEC 98A vägt)
-
-
Turntable Platter
-
Brass and aluminium die-cast combined
Diameter: 332mm
Weight: Approx. 3.6 kg (including a rubber mat)
-
Tonearm Section
-
Type
-
Statiskt balanserad typ
-
-
Effective Length
-
230 mm
-
-
Overhang
-
15 mm
-
-
Tracking Error Angle
-
Within 2° 32'(at the outer groove of 30 cm (12") record)
Within 0° 32'(at the inner groove of 30 cm (12") record)
-
-
Offset Angle
-
22°
-
-
Arm-height Adjustment Range
-
0 - 6 mm
-
-
Stylus Pressure Adjustment Range
-
0 – 4 g (direktavläsning)
-
-
Head Shell Weight
-
Ca. 7,6 g
-
-
Applicable Cartridge Weight Range
-
(Without the auxiliary weight)
5.6 to 12.0 g
14.3 to 20.7 g (including the head shell)
(With small auxiliary weight)
10.0 to 16.4 g
18.7 to 25.1 g (including the head shell)
(With large auxiliary weight)
14.3 to 19.8 g
23.0 to 28.5 g (including headshell)
-
-
Cartridge Mounting Dimension
-
JIS 12.7 mm Interval
-
-
Head Shell Terminal Lug
-
1,2 mm φ 4-stiftigt uttag
-
Terminals
-
Audio Output
-
jordanslutningspunkt x 1
-
General
-
Power Supply
-
AC 110 - 240 V, 50 / 60 Hz
-
-
Power Consumption
-
14 W (påslagen) 0,2 W (avstängd)
-
-
Dimensions (W x H x D)
-
453 x 173 x 372 mm
-
-
Weight
-
Approx. 18 kg
-
-
Accessories
-
Turntable, Turntable Mat, Dust Cover, EP Record Adaptor,Balace Weight, Auxiliary Weight Small, Auxiliary Weight Big,Head Shell, Overhang Gauge, Screw Set for Cartridge,PHONO Cable, PHONO Earth Lead, AC Mains Lead, Screw Set for Turntable, Owner's Manual
-
