Direktdriven skivspelare SL-100C

Tillbaka till produktsidan

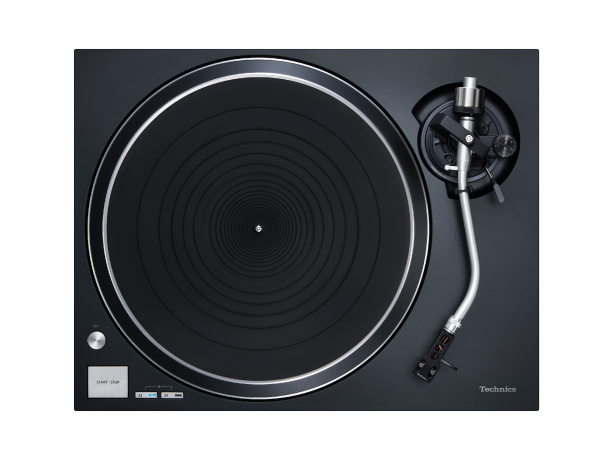

Foto av Direktdriven skivspelare SL-100C

Turntable Section

  • Type

    • Direct Drive Manual Turntable

  • Motor

    • Brushless DC motor

  • Turntable Speeds

    • 33 1/3, 45, 78 rpm

  • Starting Torque

    • 0.18 N・m / 1.8 kg･cm

  • Build-up Characteristics

    • 0.7 s. from standstill to 33 1/3 rpm

  • Braking System

    • Electronic brake

  • Wow and Flutter

    • 0.025%　W.R.M.S.

  • Turntable Platter

    • Aluminum diecast
      Diameter：332mm
      Weight：Approx. 2.0kg (Including Turntable Sheet)

Tonearm Section

  • Type

    • Universal Static Balance

  • Effective Length (from the tonearm pivot to the stylus)

    • 230mm

  • Overhang

    • 15mm

  • Tracking Error Angle

    • Within 2° 32'　(at the outer groove of 30cm(12") record)
      Within 0° 32'　(at the inner groove of 30cm(12") record)

  • Offset Angle

    • 22°

  • Arm Height Adjustment Range

    • 0 - 6mm

  • Stylus Pressure Adjustment Range

    • 0 - 4g (Direct Reading)

  • Headshell weight

    • Approx. 7.6g

  • Applicable Cartridge Weight Range(including Headshell)

    • (without auxiliary weight)
      5.6 - 12.0g
      14.3 - 20.7g (including headshell)
      (with auxiliary weight)
      10.0 - 16.4g
      18.7 - 25.1g (including headshell)

  • Head Shell Terminal Lug

    • 1.2mmφ 4-pin terminal lug

Bundled Cartridge

  • Model Name

    • audio-technica AT-VM95C

Terminals

  • Audio Output

    • PHONO (Pin Jack) x 1
      EARTH TERMINAL x 1

General

  • Power Supply

    • AC110-240 V, 50 Hz / 60 Hz

  • Power Consumption

    • 8 W
      Approx. 0.2W (Standby)

  • Dimensions (W x H x D)

    • 453 x 169 x 372 mm

  • Weight

    • Approx. 9.9 kg

  • Accessories

    • Turntable, Turntable sheet, Dust cover, EP record adaptor, Balance weight, Head shell, Cartridge(audio-technica AT-VM95C), PHONO cable, PHONO earth lead, AC power supply cord, Owner's Manual
