Nätverksförsteg SU-R1

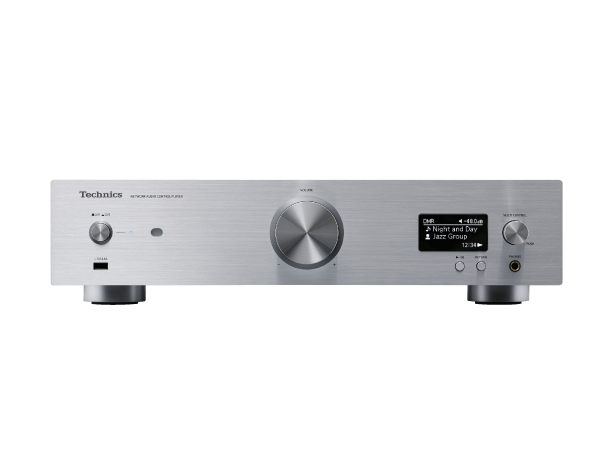

Foto av Nätverksförsteg SU-R1

Noiseless Signal Technology

  • Digital Noise Isolation Architecture
    Virtual Battery Operation
    Ultra Low Distortion Oversampling Digital Filter
    High Res Re-master
    Optimally Activated Circuit System
    Technics Digital Link
    Separated Analog/Digital Power Supply
    High Quality Analog I/O Circuit
    High Rigidity Metal Double Chassis

Technics Definitive Design

  • Aluminium Plain Miter Joint
    Multi Control Knob
    Symmetric Structure

Frequency Response

  • 2 Hz - 90 kHz (-3 dB)

Dynamic Range (IHF-A)

  • BALANCED 118 dB, UNBALANCED 115 dB

Signal to Noise Ratio (IHF-A)

  • BALANCED 118 dB, UNBALANCED 115 dB

THD+N

  • 0.0008 % (1 kHz, 0 dB)

Analogue Input Terminal

  • LINE x 2

Digital Input Terminal

  • AES/EBU Digital x 1, Coaxial Digital x 3, Optical Digital x 1, USB-A, USB-B

USB-A

  • iPod/iPhone/iPad

    • Yes
  • Support Codec

    • WAV

      • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
    • FLAC

      • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
    • DSD

      • Yes (2.8224 MHz, 5.6448 MHz)
    • AIFF

      • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
    • ALAC

      • Yes (32, 44.1, 48, 88.2, 96 kHz / 16, 24 bit)
    • AAC

      • Yes (32, 44.1, 48, 88.2, 96 kHz / 16-320 kbps)
    • WMA

      • Yes (32, 44.1, 48kHz / 16-320kbps)
    • MP3

      • Yes (32, 44.1, 48kHz / 16-320kbps)

USB-DAC (USB-B)

  • USB Audio Class Specification

    • USB Audio Class 2.0, Asynchronous Mode
  • Support Codec

    • DSC

      • Yes (2.8224 MHz, 5.6448 MHz)
    • PCM

      • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)

DLNA Support Codec

  • WAV

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
  • FLAC

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
  • DSD

    • Yes (2.8224 MHz, 5.6448 MHz)
  • AIFF

    • Yes (32, 44.1, 48, 88.2, 96, 192kHz / 16, 24bit)
  • ALAC

    • Yes (32, 44.1, 48, 88.2, 96 kHz / 16, 24 bit)
  • AAC

    • Yes (32, 44.1, 48, 88.2, 96 kHz / 16-320 kbps)
  • WMA

    • Yes (32, 44.1, 48 kHz / 16-320 kbps)
  • MP3

    • Yes (32, 44.1, 48 kHz / 16-320 kbps)

Analogue Output Terminal

  • UNBALANCED x 1, BALANCED x 1

Digital Output Terminal

  • Technics Digital Link x 1, AES/EBU Digital x 1, Coaxial Digital x 1, Optical Digital x 1

Headphone Output

  • Yes

AirPlay

  • Yes

Ethernet Interface

  • LAN (100 Base-TX /10 Base-T)

Power Supply

  • AC220-240V, 50Hz/60Hz

Power Consumption

  • 60 W

Dimensions (W x H x D)

  • 480 x 120 x 391 mm

Weight

  • Approx. 17 kg

Accessories

  • Remote control, AC cords, Operating Instructions
