Stereo Integrated Amplifier SU-R1000

See product page

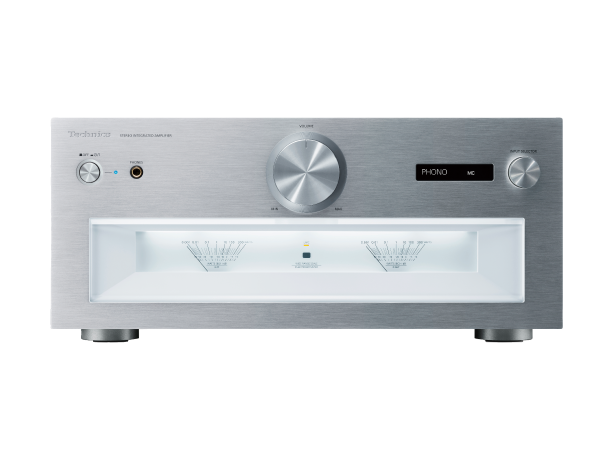

Photo of Stereo Integrated Amplifier SU-R1000

Accurate Digital Technology

  • JENO Engine (Jitter Elimination and Noise-shaping Optimisation)
    LAPC (Load Adaptive Phase Calibration)
    Advanced Speed Silent Power Supply
    Battery Driven Clock Generator
    Noiseless Signal Technology
    Advancement of Power Supply

Technics Definitive Design

  • High-rigidity Cabinet
    Three-section Configuration

FTC Output Power

  • 150W + 150W ( 1kHz, T.H.D. 0.5 %, 8Ω, 20kHz LPF ),
    300W + 300W ( 1kHz, T.H.D. 0.5 %, 4Ω, 20kHz LPF)

Input Sensitivity / Input Impedance

  • LINE 200 mV / 22 kΩ, PHONO (MM) 2.5 mV / 47 kΩ, PHONO(MC) 300uV /100Ω

Frequency Response

  • LINE 5 Hz-80 kHz (-3 dB, 8 Ω),
    PHONO (MM) 20 Hz - 20 kHz (RIAA DEVIATION ±1 dB, 8 Ω)
    DIGITAL 5 Hz - 80 kHz (-3 dB, 8 Ω)

Load Impedance

  • 4 Ω-16 Ω

Analogue Input Terminal

  • LINE x 2 (LINE 1, LINE2), LINE XLR BALANCED x1, PHONO (MM/MC) x1, PHONO XLR BALANCED(MC) x1, MAIN IN x1, REC IN x1

Digital Input Terminal

  • Optical digital x2 (OPT 1, OPT 2) , Coaxial digital x2(COAX 1, COAX 2), USB-B x2 (PC 1, PC 2)

Analogue Output Terminal

  • PRE OUTx1, REC OUT x1

Headphone Output

  • Yes, Stereo Φ6.3mm

support Codec

  • USB 2.0 high-speed ,USB Audio Class 2.0, Asynchronous mode

Support Codec

  • PCM

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)

  • DSD

    • Yes (2.8 MHz, 5.6 MHz, 11.2 MHz, 22.4 MHz* *ASIO Native mode only)

Power Supply

  • AC 220-240 V, 50 Hz / 60 Hz

Power Consumption

  • 220 W

Dimensions (W x H x D)

  • 430 mm × 191 mm × 459 mm

Weight

  • Approx. 22.8 kg

Accessories

  • Remote Control, Calibration Record, AC Cord, Owner's Manual
