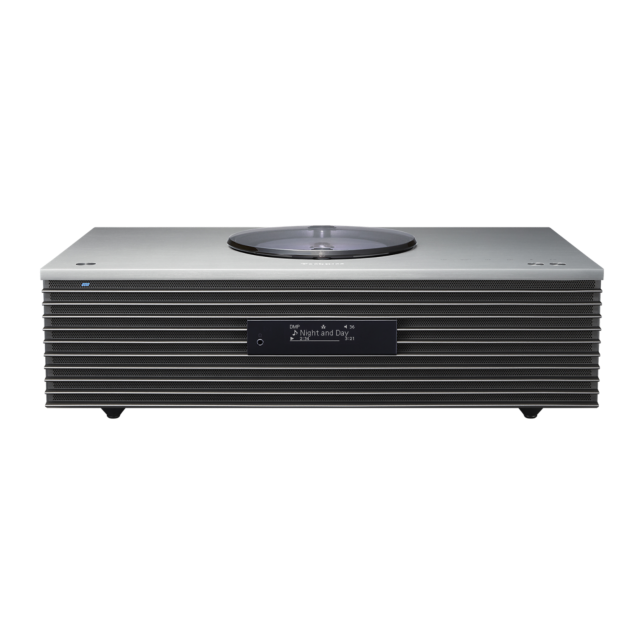

SC-C70MK2
Premium Class Music System | OTTAVA™ f
Features
Newly Developed Speaker Units & Acoustic Lens
3 JENO Engines
Space Tune™
iOS device calibration is available for more precise adjustment
Tune DSP parameters to optimise acoustic performance.
Multi-room
Complete Compatibility
Favourite Function
Functional beauty that has been further refined
Get Inspired
Specs
Size and Weight
- Height
- 143mm
- Width
- 450mm
- Depth
- 280mm
- Weight
- 8.0kg
*Approx.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license. Other trademarks and trade names are those of their respective owners.
Google and Chromecast are trademarks of Google LLC.
AirPlay, iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
"Direct Stream Digital", DSD and their logos are trademarks of Sony Corporation.
Wi-Fi®, Wi-Fi CERTIFIED™ and Wi-Fi Protected Setup™ are marks of the Wi-Fi Alliance.
Newly Developed Speaker Units & Acoustic Lens
JENO Engine (Jitter Elimination and Noiseshaping Optimization)
Load Adaptive Phase Calibration (w/o Calibration function)
Space Tune™
Twin Power Supply Circuit System
CD High-Res Re-master
Accurate Digital Technology
-
JENO Engine (Jitter Elimination and Noise-shaping Optimization)
Load Adaptive Phase Calibration (w/o Calibration function)
Space Tune™
Twin Power Supply Circuit System
Re-master
Noiseless Signal Technology
-
Twin Power Supply Circuit System
Optimally Activated Circuit System
CD High-Res Re-master
Emotive Acoustic Technology
-
Acoustic Lens and Louver
Dual bass reflex port
Output Power
-
Front speaker: 30 W + 30 W (1 kHz, T.H.D. 1.0 %, 6Ω, 20 kHz LPF)
Subwoofer : 40 W (70 Hz, T.H.D. 1.0 %, 4Ω, 20 kHz LPF)
Speaker Unit
-
Woofer : 8 cm Cone Type x2 / Tweeter: 2 cm Dome Type x 2 / Subwoofer: 12 cm Cone Type
Analogue Input Terminal
-
AUX IN x1 (φ3.5mm)
Digital Input Terminal
-
Optical Digital x1, USB-A
Headphone Output
-
Yes (Ø3.5 mm)
Disc Compatibility
-
Audio CD, CD-R/CD-RW (CD-DA, Discs recorded and finalized on recording devices)
USB-A
-
iPod/iPhone/iPad
-
No
-
-
Support Codec
-
WAV
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
-
-
FLAC
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
-
-
DSD
-
Yes (2.8 MHz, 5.6 MHz, 11.2MHz)
-
Yes (2.8 MHz, 5.6 MHz, 11.2MHz)
-
-
AIFF
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
-
-
ALAC
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
-
-
AAC
-
Yes (32, 44.1, 48, 88.2, 96 kHz / 16-320 kbps)
-
Yes (32, 44.1, 48, 88.2, 96 kHz / 16-320 kbps)
-
-
MP3
-
Yes (32, 44.1, 48 kHz / 16-320 kbps)
-
Yes (32, 44.1, 48 kHz / 16-320 kbps)
-
-
DLNA
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
Ethernet Interface
-
LAN (100 Base-TX/10 Base-T)
Wi-Fi
-
IEEE 802.11 a/b/g/n/ac
2.4 GHz / 5 GHz Band
Google Cast™
-
Yes
Works with Google Assistant
-
Yes
AirPlay 2
-
Yes
Bluetooth® (Support codec)
-
Yes (AAC, SBC)
TIDAL / Spotify
-
Yes* / Yes*
Tuner
-
DAB/DAB+/FM
Power Supply
-
AC220-240 V, 50 Hz / 60 Hz
Power Consumption
-
45 W
Dimensions (W x H x D)
-
450 x 143 x 280 mm
Weight
-
Approx. 8.0kg
Accessories
-
Remote Control, AC Cord, DAB Indoor Antena 、Batteries for Remote Control
