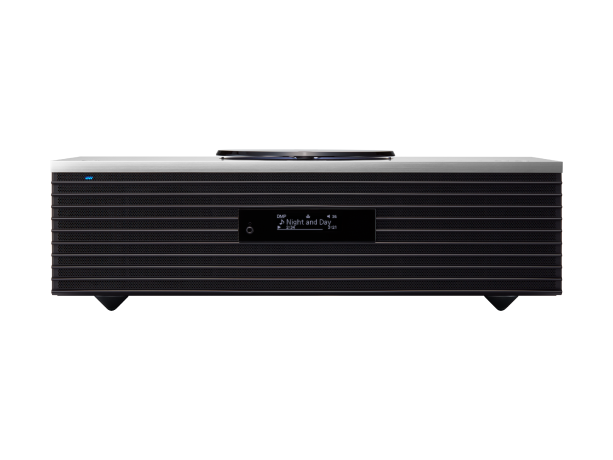

Premium All-In-One Music System SC-C70
SC-C70
Premium Class Music System | OTTAVA™ f
Specs
Size and Weight
- Height
- 143mm
- Width
- 450mm
- Depth
- 280mm
- Weight
- 7.8kg
*Approx.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license. Other trademarks and trade names are those of their respective owners.
AirPlay, iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
"Direct Stream Digital", DSD and their logos are trademarks of Sony Corporation.
Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.
MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.
Wi-Fi®, Wi-Fi CERTIFIED™ and Wi-Fi Protected Setup™ are marks of the Wi-Fi Alliance.
DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network Alliance.
JENO Engine (Jitter Elimination and Noise-shaping Optimization)
Load Adaptive Phase Calibration (w/o Calibration function)
Space Tune™
Acoustic Lens and Louver
Twin Power Supply Circuit System
CD High-Res Re-master
Accurate Digital Technology
-
JENO Engine (Jitter Elimination and Noise-shaping Optimization)
Load Adaptive Phase Calibration (w/o Calibration function)
Space Tune
Noiseless Signal Technology
-
Twin Power Supply Circuit System
Optimally Activated Circuit System
CD High-Res Re-master
Emotive Acoustic Technology
-
Acoustic Lens and Louver
Dual bass reflex port
Output Power
-
Front speaker: 30 W + 30 W (1 kHz, T.H.D. 1.0 %, 6Ω, 20 kHz LPF)
Subwoofer : 40 W (70 Hz, T.H.D. 1.0 %, 4Ω, 20 kHz LPF)
Speaker Unit
-
Woofer : 8 cm Cone Type x2 / Tweeter: 2 cm Dome Type x 2 / Subwoofer: 12 cm Cone Type
Analogue Input Terminal
-
AUX IN x1 (φ3.5mm)
Digital Input Terminal
-
Optical Digital x1, USB-A
Headphone Output
-
Yes (Ø3.5 mm)
Disc Compatibility
-
Audio CD, CD-R/CD-RW (CD-DA, Discs recorded and finalized on recording devices)
USB-A
-
iPod/iPhone/iPad
-
No
-
-
Support Codec
-
WAV
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
-
-
FLAC
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
-
-
DSD
-
Yes (2.8 MHz, 5.6 MHz)
-
-
AIFF
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
-
-
ALAC
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
-
-
AAC
-
Yes (32, 44.1, 48, 88.2, 96 kHz / 16-320 kbps)
-
-
WMA
-
Yes (32, 44.1, 48 kHz / 16-320 kbps)
-
-
MP3
-
Yes (32, 44.1, 48 kHz / 16-320 kbps)
-
-
DLNA Support Codec
-
WAV
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
-
-
FLAC
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
-
-
DSD
-
Yes (2.8 MHz, 5.6 MHz)
-
-
AIFF
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
-
-
ALAC
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
-
-
AAC
-
Yes (32, 44.1, 48, 88.2, 96 kHz / 16-320 kbps)
-
-
WMA
-
Yes (32, 44.1, 48 kHz / 16-320 kbps)
-
-
MP3
-
Yes (32, 44.1, 48 kHz / 16-320 kbps)
-
Ethernet Interface
-
LAN (100 Base-TX/10 Base-T)
Wi-Fi
-
IEEE 802.11 b/g/n,
2.4 GHz Band (1-13 Channel)
AirPlay
-
Yes
Bluetooth® (Support codec)
-
Yes (AAC, SBC)
TIDAL / Spotify
-
Yes* / Yes*
Tuner
-
DAB/DAB+/FM
Power Supply
-
AC220-240 V, 50 Hz / 60 Hz
Power Consumption
-
45 W
Dimensions (W x H x D)
-
450 x 143 x 280 mm
Weight
-
Approx. 7.8 kg
Accessories
-
Remote Control, AC Cord, DAB indoor antenna, Owner's Manual, Batteries for Remote Control
Note
-
*Network content services are operated by their respective service providers, and service may be discontinued either temporarily or permanently without notice. Some content may not be available in the country in which you reside.
*Registration/subscription may be required. Fees may apply.
