Direct Drive Turntable System SL-1210G

See product page

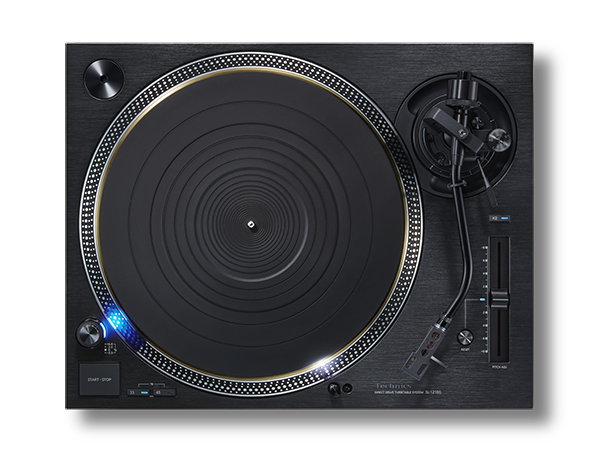

Photo of Direct Drive Turntable System SL-1210G

Turntable section

  • Type

    • Direct Drive Manual Turntable

  • Turntable Speeds

    • 33-1/3, 45 and 78 rpm

  • Adjust Range

    • ±8 %, ±16 %

  • Starting Torque

    • 3.3 kg-cm

  • Build-up Characteristics

    • 0.7 s. from Standstill to 33-1/3 rpm

  • Wow And Flutter

    • 0.025 % W.R.M.S. (JIS C5521)

  • Rumble

    • 78 dB (IEC 98A weighted)

  • Turntable Platter

    • Brass and aluminium die-cast combined
      Diameter: 332mm
      Weight: Approx. 3.6 kg (including a rubber mat)

Tonearm Section

  • Type

    • Universal Static Balance

  • Effective Length

    • 230 mm

  • Overhang

    • 15 mm

  • Tracking Error Angle

    • Within 2° 32'(at the outer groove of 30 cm (12"") record)
      Within 0° 32'(at the inner groove of 30 cm (12"") record)

  • Offset Angle

    • 22°

  • Arm-height Adjustment Range

    • 0 - 6 mm

  • Stylus Pressure Adjustment Range

    • 0 - 4 g (direct reading)

  • Head Shell Weight

    • Approx. 7.6 g

  • Applicable Cartridge Weight Range

    • (Without the auxiliary weight)
      5.6 to 12.0 g
      14.3 to 20.7 g (including the head shell)
      (With small auxiliary weight)
      10.0 to 16.4 g
      18.7 to 25.1 g (including the head shell)
      (With large auxiliary weight)
      14.3 to 19.8 g
      23.0 to 28.5 g (including headshell)

  • Cartridge Mounting Dimension

    • JIS 12.7 mm Interval

  • Head Shell Terminal Lug

    • 1.2 mm φ 4-pin Terminal Lug

Terminals

  • Audio Output

    • PHONO (Pin Jack), EARTH TERMINAL

General

  • Power Supply

    • AC 110 - 240 V, 50 / 60 Hz

  • Power Consumption

    • 14 W Approx. 0.2 W (standby)

  • Dimensions (W x H x D)

    • 453 x 173 x 372 mm

  • Weight

    • Approx. 18 kg

  • Accessories

    • Turntable, Turntable Mat, Dust Cover, EP Record Adaptor,Balace Weight, Auxiliary Weight Small, Auxiliary Weight Big,Head Shell, Overhang Gauge, Screw Set for Cartridge,PHONO Cable, PHONO Earth Lead, AC Mains Lead, Screw Set for Turntable, Owner's Manual
