Stereo Integrated Amplifier SU-R1000

See product page

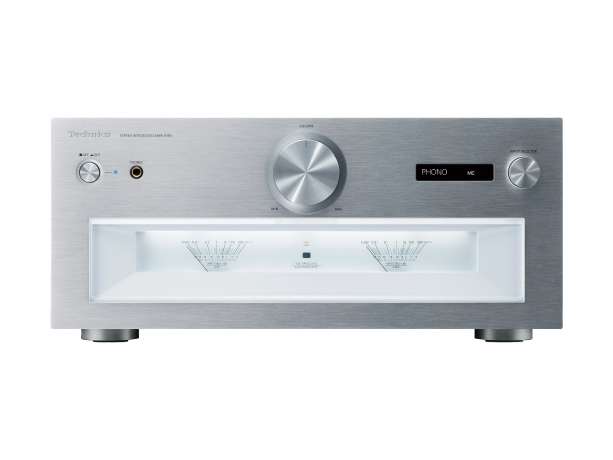

Photo of Stereo Integrated Amplifier SU-R1000

Accurate Digital Technology

  • JENO Engine (Jitter Elimination and Noise-shaping Optimisation)
    LAPC (Load Adaptive Phase Calibration)
    Advanced Speed Silent Power Supply
    Battery Driven Clock Generator
    Noiseless Signal Technology
    Advanced Speed Silent Power Supply
    Advancement of Power Supply

Technics Definitive Design

  • High-rigidity Cabinet
    Three-section Configuration

FTC Output Power

  • 150W + 150W ( 1kHz, T.H.D. 0.5 %, 8Ω, 20kHz LPF ),
    300W + 300W ( 1kHz, T.H.D. 0.5 %, 4Ω, 20kHz LPF)

Input Sensitivity / Input Impedance

  • LINE 200 mV / 22 kΩ, PHONO (MM) 2.5 mV / 47 kΩ, PHONO(MC) 300uV /100Ω

Frequency Response

  • LINE 5 Hz-80 kHz (-3 dB, 8 Ω),
    PHONO (MM) 20 Hz - 20 kHz (RIAA DEVIATION ±1 dB, 8 Ω)
    DIGITAL 5 Hz - 80 kHz (-3 dB, 8 Ω)

Load Impedance

  • 4 Ω-16 Ω

Analogue Input Terminal

  • LINE x 2 (LINE 1, LINE2), LINE XLR BALANCED x1, PHONO (MM/MC) x1, PHONO XLR BALANCED(MC) x1, MAIN IN x1, REC IN x1

Digital Input Terminal

  • Optical digital x2 (OPT 1, OPT 2) , Coaxial digital x2(COAX 1, COAX 2), USB-B x2 (PC 1, PC 2)

Analogue Output Terminal

  • PRE OUTx1, REC OUT x1

Headphone Output

  • Yes, Stereo Φ6.3mm

support Codec

  • USB 2.0 high-speed ,USB Audio Class 2.0, Asynchronous mode

Support Codec

  • PCM

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)

  • DSD

    • Yes (2.8 MHz, 5.6 MHz, 11.2 MHz, 22.4 MHz* *ASIO Native mode only)

Power Supply

  • AC 120 V ,60 Hz

Power Consumption

  • 220 W

Dimensions (W x H x D)

  • 430 mm x 191 mm x 459 mm
    16-15/16 x 7-17/32 x 18-3/32 inch

Weight

  • Approx. 22.8 kg
    Approx. 50.3lbs

Accessories

  • Remote Control, Calibration Record, AC Cord, Owner's Manual
