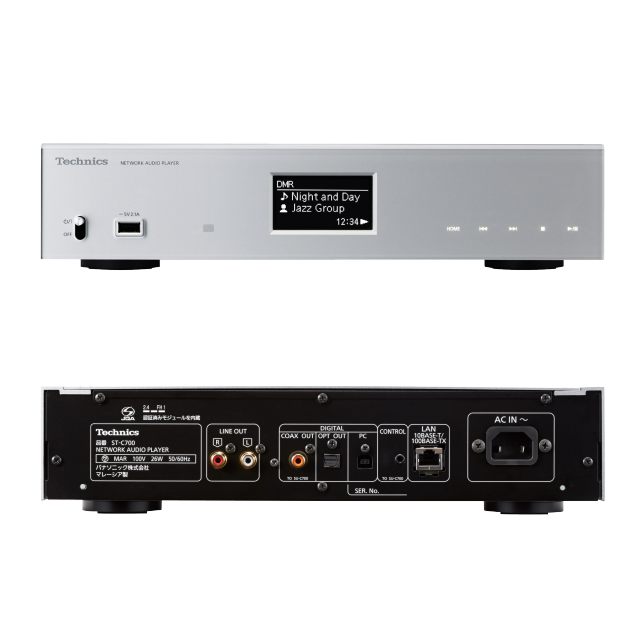

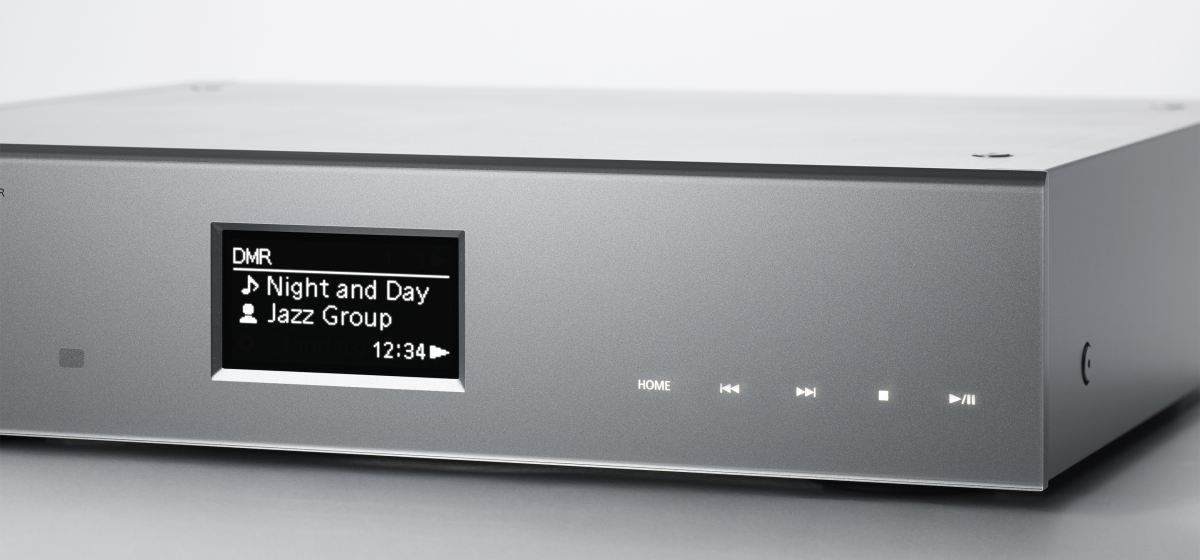

ST-C700D
Premium Class
Egenskaber
Digital støjisoleringsarkitektur
Virtual Battery Operation
Optimally Activated Circuit System

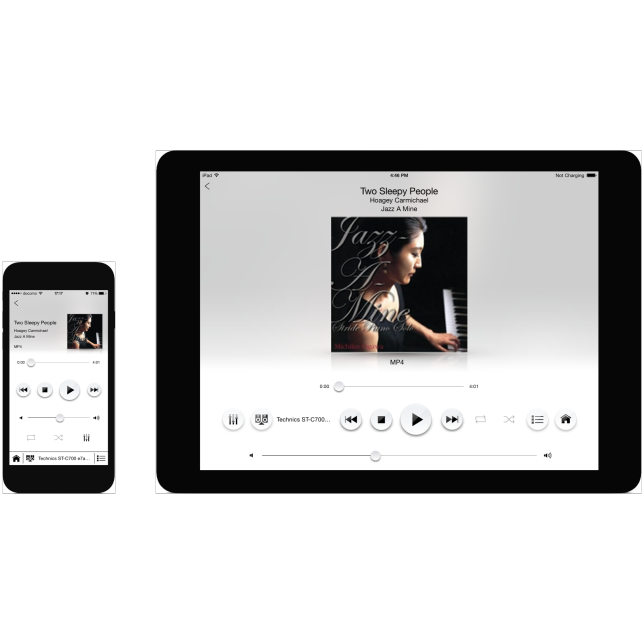

Technics Music Appfor Smartphones
Technics Music App giver dig mulighed for nemt og behageligt at vælge en musikkilde, vælge afspilningsudstyr og oprette en playliste på en enkelt skærm på en tablet. Music App’s skærm viser musikindhold i DLNA-kompatible servere, indhold lagret i terminalen, som kører appen, og indhold gemt i USB-hukommelsesenheder tilsluttet udstyret. Det giver dig integreret afspilningskontrol. Når vores Music App kombineres med ST-C700D, giver den dig ikke alene mulighed for at styre lydstyrken og afspilningen, men også for at justere Bass, Mid og Treble niveauer.
Læs mere
High Res Re-master
Oversampling digitalfilter med ultralav forvrængning
Højkvalitets analogt kredsløb
Bliv inspireret
Specifikationer
Størrelse og vægt
- Højde
- 78mm
- Bredde
- 340mm
- Dybde
- 305mm
- Vægt
- 4.0kg
Qualcomm aptX is a product of Qualcomm Technologies International, Ltd.
Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries, used with permission. aptX is a trademark of Qualcomm Technologies International, Ltd., registered in the United States and other countries, used with permission.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license. Other trademarks and trade names are those of their respective owners.
AirPlay, iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
"Direct Stream Digital", DSD and their logos are trademarks of Sony Corporation.
Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.
MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.
The MQA logo is a trademark of MQA Limited. © MQA Limited 2017

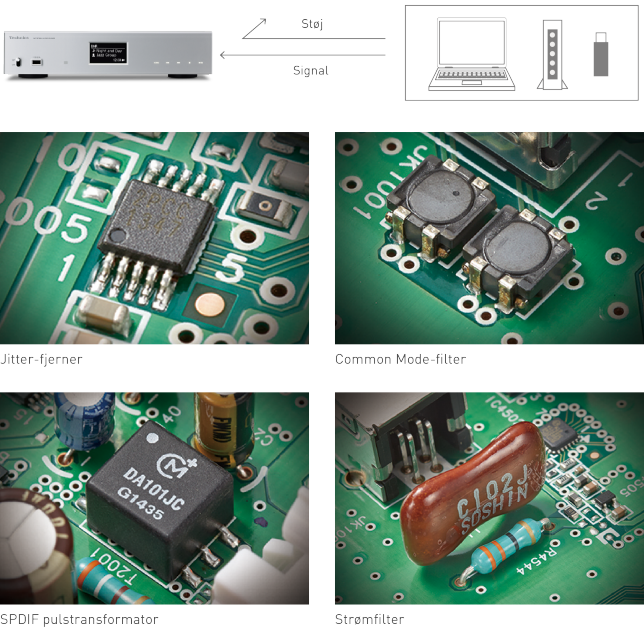

Digital støjisoleringsarkitektur minimerer jitter og støj

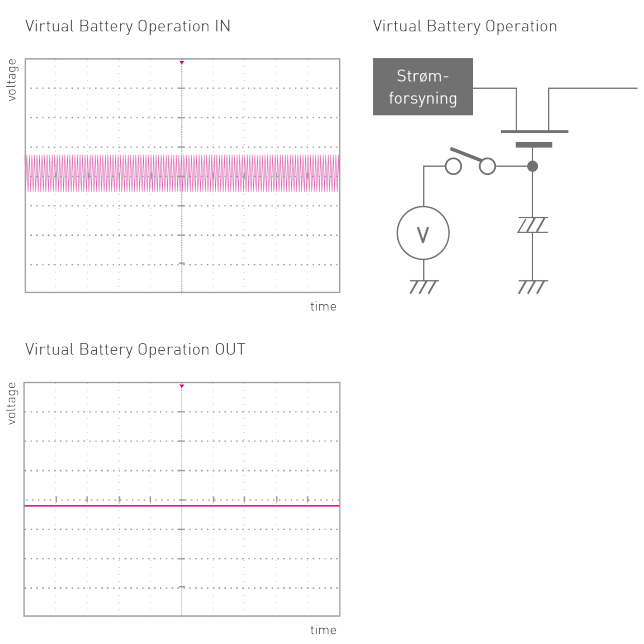

Virtual Battery Operation giver mange af batteridriftens fordele
Optimally Activated Circuit System

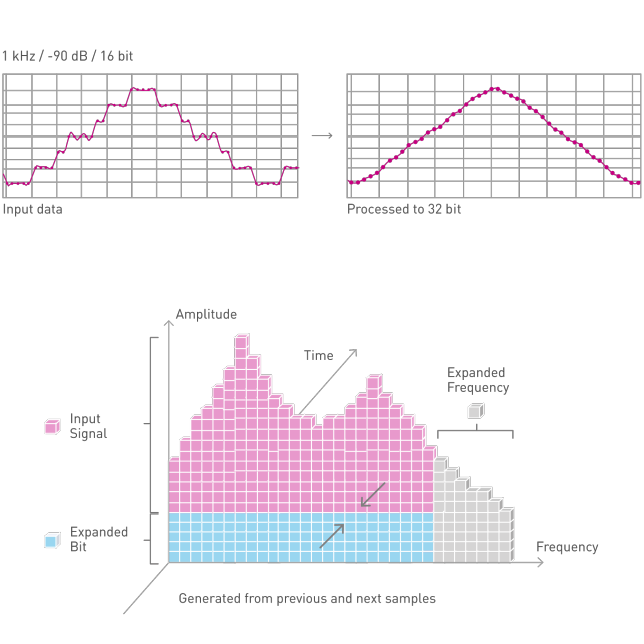

High Res Re-master opskalerer lyden til højere opløsning

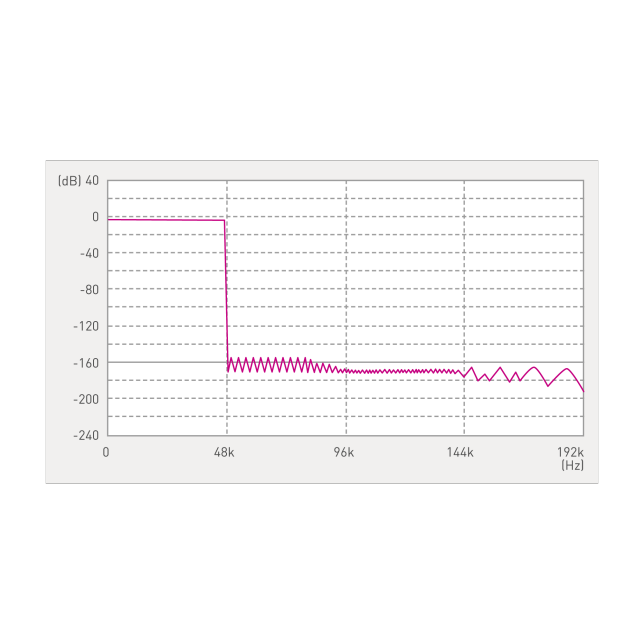

Oversampling digitalfilter med ultralav forvrængning
Separate analoge og digitale strømforsyninger
Noiseless Signal Technology
-
Digital Noise Isolation Architecture
Virtual Battery Operation
Ultra Low Distortion Oversampling Digital Filter
High Res Re-master
Optimally Activated Circuit System

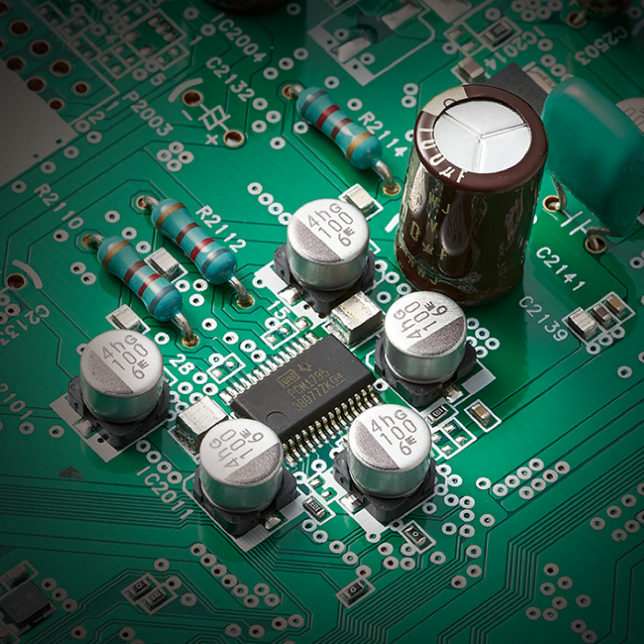

High Quality Analogue Circuit
High Rigidity Metal Double Chassis
Technics Definitive Design
-
High Rigidity Aluminium Cabinet
Touch Switch Control
Symmetric Structure
Frequency Response
-
2 Hz - 90 kHz (-3 dB)
Dynamic Range (IHF-A)
-
112 dB
Signal to Noise Ratio (IHF-A)
-
112 dB
THD+N
-
0.0012 % (1 kHz, 0 dB)
Digital Input Terminal
-
USB-A, USB-B
USB-A
-
iPod/iPhone/iPad
-
Yes
-
-
Support Codec
-
WAV
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
-
-
FLAC
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
-
-
DSD
-
Yes (2.8 MHz, 5.6 MHz)
-
-
AIFF
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
-
-
ALAC
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
-
-
AAC
-
Yes (32, 44.1, 48, 88.2, 96 kHz / 16-320 kbps)
-
-
WMA
-
Yes (32, 44.1, 48 kHz / 16-320 kbps)
-
-
MP3
-
Yes (32, 44.1, 48 kHz / 16-320 kbps)
-
-
MQA
-
Yes
-
-
USB-DAC (USB-B)
-
USB Audio Class Specification
-
USB Audio Class 2.0, Asynchronous Mode
-
-
Support Codec
-
DSC
-
Yes (2.8 MHz, 5.6 MHz)
-
-
PCM
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24, 32 bit)
-
-
MQA
-
Yes
-
-
DLNA Support Codec
-
WAV
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
-
-
FLAC
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
-
-
DSD
-
Yes (2.8 MHz, 5.6 MHz)
-
-
AIFF
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
-
-
ALAC
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
-
-
AAC
-
Yes (32, 44.1, 48, 88.2, 96 kHz / 16-320 kbps)
-
-
WMA
-
Yes (32, 44.1, 48 kHz / 16-320 kbps)
-
-
MP3
-
Yes (32, 44.1, 48 kHz / 16-320 kbps)
-
-
MQA
-
Yes
-
Analogue Output Terminal
-
LINE x 1
Digital Output Terminal
-
Coaxial Digital x 1, Optical Digital x 1
Ethernet interface
-
LAN (100 Base-TX/10 Base-T)
System Port
-
System Control Input/Output (Φ3.5 mm Jack)
AirPlay
-
Yes
Bluetooth® (Support codec)
-
Yes (Qualcomm® aptX™ Low Latency, AAC, SBC)
TIDAL / Spotify
-
Yes* / Yes*
*Compatible music streaming services will be supported sequentially through firmware updates.
*Network content services are operated by their respective service providers, and service may be discontinued either temporarily or permanently without notice. Some content may not be available in the country in which you reside.
*Registration/subscription may be required. Fees may apply.
NFC (Near Field Communication)
-
Yes
Tuner
-
DAB/DAB+/FM
Power Supply
-
AC220-240 V, 50 Hz/60 Hz
Power Consumption
-
26 W
Dimensions (W x H x D)
-
340 x 78 x 305 mm
Weight
-
Approx. 4.0 kg
Accessories
-
Remote Control, AC Cord, Coaxial Digital Cable, Control Cable, Operating Instructions
