Kaiutinjärjestelmä SB-C700

Takaisin tuotesivulle

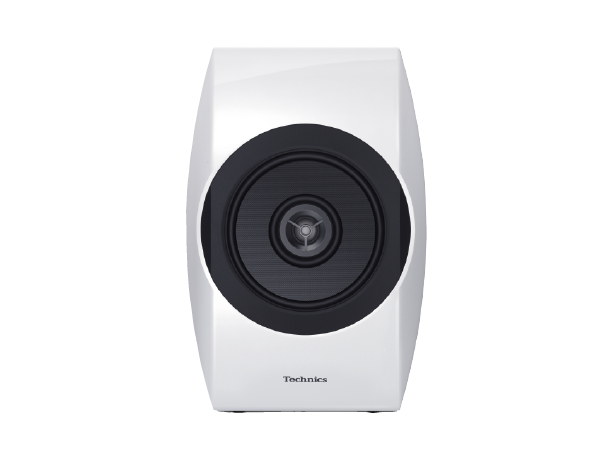

Valokuva Kaiutinjärjestelmä SB-C700 kamerasta

Emotive Acoustic Technology

  • Point-Sound-Source Speaker System
    Ultra Wide Range Reproduction
    Phase Precision Driver (Coaxial Flat 2-way Speaker Unit)
    High-quality Network Circuit
    High Rigidity Entasis Form Cabinet

Technics Definitive Design

  • White High Gloss Finish
    Entasis Form Enclosure
    Magnet Fixed Fabric Grille

Type

  • Coaxial 2-way 2 Speaker Bass Reflex

Speaker Unit

  • Woofer / Tweeter:
    Coaxial 16-cm Flat Type x 1 / 1.9-cm Dome type x 1

Crossover Frequency

  • 2.5 kHz

Frequency Range

  • 40 Hz - 100 kHz (-16 dB), 45 Hz - 80 kHz (-10 dB)

Sound pressure level

  • 85 dB / 2.83 V (m)

Impedance

  • 4 Ω

Input Power (IEC)

  • 50 W (Rated), 100 W (Max)

Dimensions (W x H x D)

  • 220 x 336 x 286 mm (including net and terminals)

Weight

  • Approx. 8.5 kg (/pc)

Accessories

  • Speaker Cable (1.2 m) x 2 *1, Operating Instructions
    *1 Length of the speaker cable may not be sufficient on your placement. Please prepare suitable cable based on your installation requirements.
