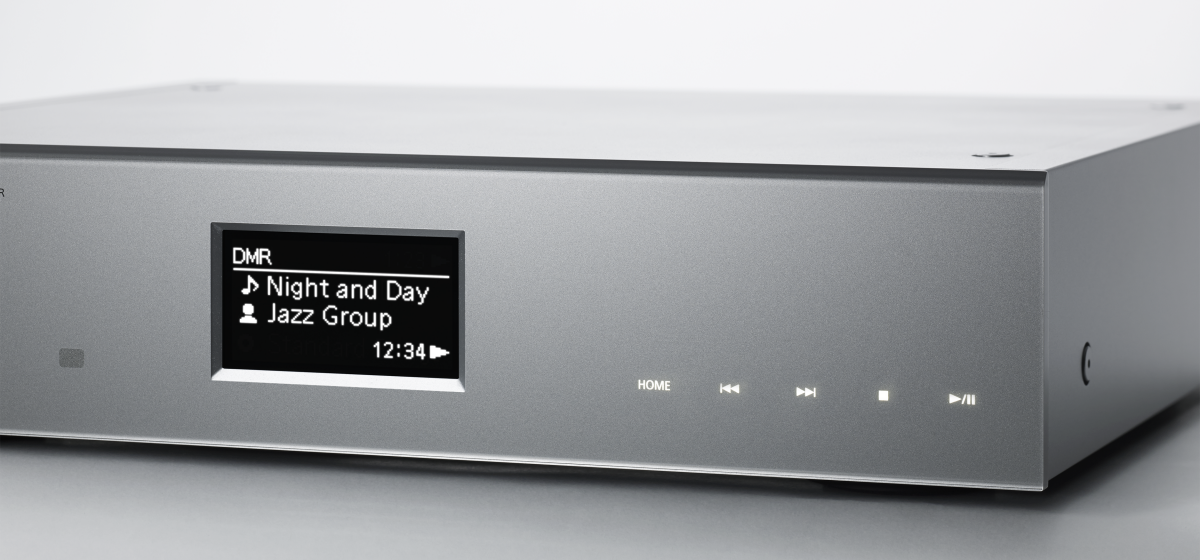

ST-C700D
Premium Class
Funksjoner
Digital Noise Isolation Architecture
Virtual Battery Operation
Virtual Battery Operation
Technics Music-appfor Smartphones
Technics Music-app gir deg mulighet til å velge musikkilde, velge avspillingsutstyr og enkel og praktisk oppretting av spillelister på et nettbrett. Music-appens skjermbilder viser musikkinnholdet i DLNA-kompatibel server, innholdet lagret i terminalen som kjører appen og innholdet lagret i USB-minneenheten tilkoblet utstyret gir deg innebygget kontroll over avspillingen. Når Music-appen kombineres med SE-R1 kan du ikke bare kontrollere volumet og avspilling, men du kan også justere bass-, mellom- og treblenivåene.
Finn ut mer
High Res Re-master
Digitalt oversamplingsfilter med ultralav forvrengning
Analog krets i høy kvalitet
Bli inspirert
Spesifikasjoner
Størrelse og vekt
- Høyde
- 78mm
- Bredde
- 340mm
- Dybde
- 305mm
- Vekt
- 4.0kg
Qualcomm aptX is a product of Qualcomm Technologies International, Ltd.
Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries, used with permission. aptX is a trademark of Qualcomm Technologies International, Ltd., registered in the United States and other countries, used with permission.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license. Other trademarks and trade names are those of their respective owners.
AirPlay, iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
"Direct Stream Digital", DSD and their logos are trademarks of Sony Corporation.
Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.
MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.
The MQA logo is a trademark of MQA Limited. © MQA Limited 2017
Digital Noise Isolation Architecture minimerer jitter og støy
Virtual Battery Operation gir renere signal
Optimalt aktiverte kretssystemer
High Res Re-master skalerer lyden opp til en høyere oppløsning

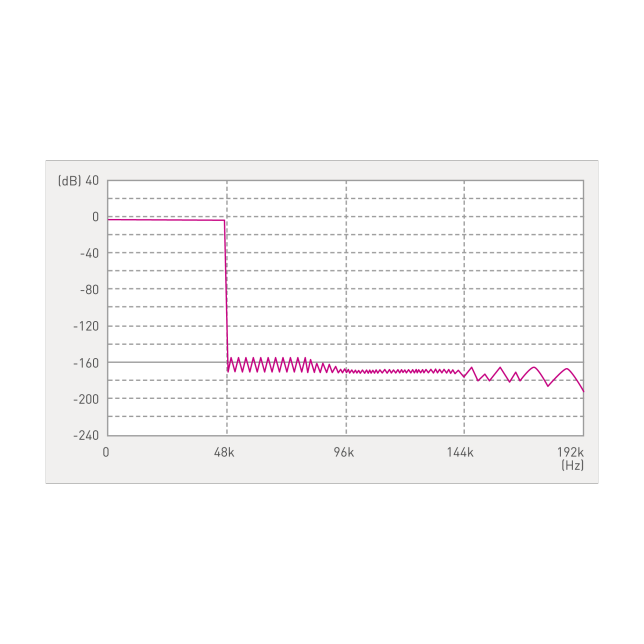

Digitalt oversamplingsfilter med ultralav forvrengning
Separat strømforsyning for alanoge resp. digitale kretser
Noiseless Signal Technology
-
Digital Noise Isolation Architecture
Virtual Battery Operation
Ultra Low Distortion Oversampling Digital Filter
High Res Re-master
Optimally Activated Circuit System
High Quality Analogue Circuit
High Rigidity Metal Double Chassis
Technics Definitive Design
-
High Rigidity Aluminium Cabinet
Touch Switch Control
Symmetric Structure
Frequency Response
-
2 Hz - 90 kHz (-3 dB)
Dynamic Range (IHF-A)
-
112 dB
Signal to Noise Ratio (IHF-A)
-
112 dB
THD+N
-
0.0012 % (1 kHz, 0 dB)
Digital Input Terminal
-
USB-A, USB-B
USB-A
-
iPod/iPhone/iPad
-
Yes
-
-
Support Codec
-
WAV
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
-
-
FLAC
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
-
-
DSD
-
Yes (2.8 MHz, 5.6 MHz)
-
-
AIFF
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
-
-
ALAC
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
-
-
AAC
-
Yes (32, 44.1, 48, 88.2, 96 kHz / 16-320 kbps)
-
-
WMA
-
Yes (32, 44.1, 48 kHz / 16-320 kbps)
-
-
MP3
-
Yes (32, 44.1, 48 kHz / 16-320 kbps)
-
-
MQA
-
Yes
-
-
USB-DAC (USB-B)
-
USB Audio Class Specification
-
USB Audio Class 2.0, Asynchronous Mode
-
-
Support Codec
-
DSC
-
Yes (2.8 MHz, 5.6 MHz)
-
-
PCM
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24, 32 bit)
-
-
MQA
-
Yes
-
-
DLNA Support Codec
-
WAV
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
-
-
FLAC
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
-
-
DSD
-
Yes (2.8 MHz, 5.6 MHz)
-
-
AIFF
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
-
-
ALAC
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
-
-
AAC
-
Yes (32, 44.1, 48, 88.2, 96 kHz / 16-320 kbps)
-
-
WMA
-
Yes (32, 44.1, 48 kHz / 16-320 kbps)
-
-
MP3
-
Yes (32, 44.1, 48 kHz / 16-320 kbps)
-
-
MQA
-
Yes
-
Analogue Output Terminal
-
LINE x 1
Digital Output Terminal
-
Coaxial Digital x 1, Optical Digital x 1
Ethernet interface
-
LAN (100 Base-TX/10 Base-T)
System Port
-
System Control Input/Output (Φ3.5 mm Jack)
AirPlay
-
Yes
Bluetooth® (Support codec)
-
Yes (Qualcomm® aptX™ Low Latency, AAC, SBC)
TIDAL / Spotify
-
Yes* / Yes*
*Compatible music streaming services will be supported sequentially through firmware updates.
*Network content services are operated by their respective service providers, and service may be discontinued either temporarily or permanently without notice. Some content may not be available in the country in which you reside.
*Registration/subscription may be required. Fees may apply.
NFC (Near Field Communication)
-
Yes
Tuner
-
DAB/DAB+/FM
Power Supply
-
AC220-240 V, 50 Hz/60 Hz
Power Consumption
-
26 W
Dimensions (W x H x D)
-
340 x 78 x 305 mm
Weight
-
Approx. 4.0 kg
Accessories
-
Remote Control, AC Cord, Coaxial Digital Cable, Control Cable, Operating Instructions
