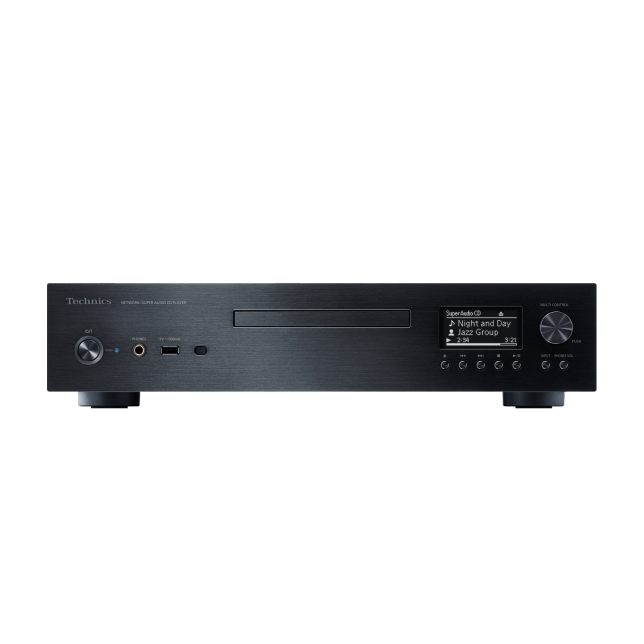

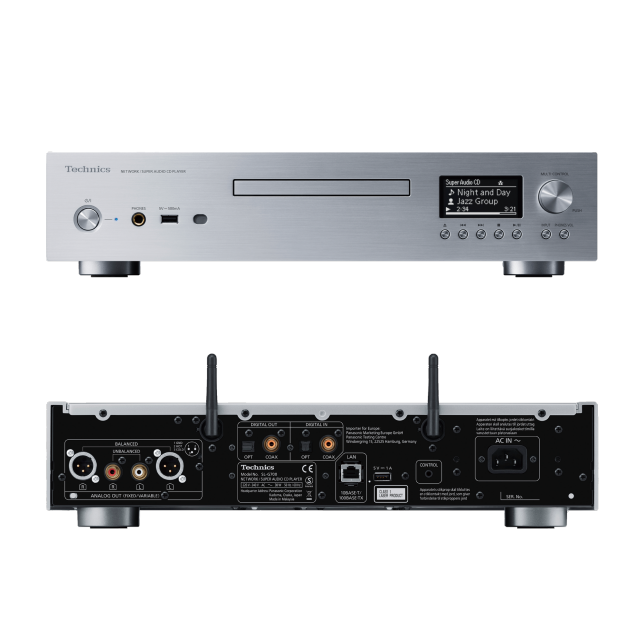

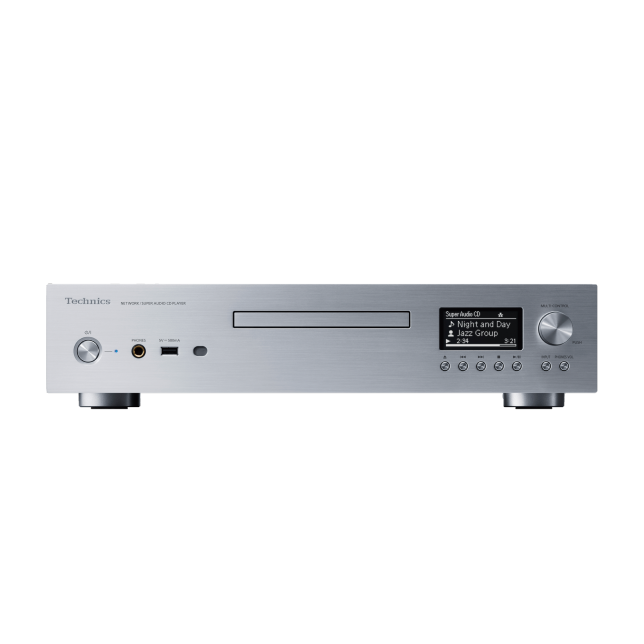

Network / Super Audio CD Player SL-G700

SL-G700

Grand Class Audio Player

Multi digital player which covers most of the digital audio media available today from traditional CD/SACD to the latest high-res and many streaming services.

SL-G700

Specs

Silver
Black

Size and Weight

Height: 98mm

Width: 430mm

Depth: 407mm

Weight: 12.2kg

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license. Other trademarks and trade names are those of their respective owners.
Google and Chromecast are trademarks of Google LLC.
AirPlay, iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
"Direct Stream Digital", DSD and their logos are trademarks of Sony Corporation.
Wi-Fi®, Wi-Fi CERTIFIED™ and Wi-Fi Protected Setup™ are marks of the Wi-Fi Alliance.

Premium High-grade D/A Converter and Dual Mono Construction D/A Circuit

Discrete AMP Module

High-speed Silent Hybrid Power Supply

High-quality Headphone Output

Four-Section Configuration

High-Rigidity Drive Mechanism

Grand Class high quality sound

Premium High-grade D/A Converter AK4497, and Dual Mono Construction D/A Circuit, Variable Analog Audio Output
Discrete AMP Module
Battery Driven Clock Generator
High-speed Silent Hybrid Power Supply
Digital Noise Isolation Architecture
Supports Higher Grade Headphone Connection with Integrated Class AA Headphone AMP
Pure Disc Playback Mode for SACD/CD Playback for Greater Sound Purity
High-Res Re-master

High-quality Technics Design

Four-Section Configuration
High-Rigidity Chassis and Aluminium Die-cast Disc Tray – High-Stability SACD Mechanism
7mm Thick Aluminium Plate Used for the Front Panel
Control Port for System Control with SU-G700

Disc Compatibility

Super Audio CD (2 ch area only), CD, CD-R, CD-RW

Disc Format

Super Audio CD, CD-DA

Frequency Response

Super Audio CD: 2 Hz to 50 kHz (-3 dB) / CD: 2Hz to 20 kHz (-3 dB)

Dynamic Range (IHF-A)

Super Audio CD: BALANCED: 118dB (IHF-A) / UNBALANCED: 115dB (IHF-A)
CD: BALANCED: 98dB (IHF-A) / UNBALANCED: 98dB (IHF-A)

Signal to Noise Ratio (IHF-A)

BALANCED: 121 dB (IHF-A) / UNBALANCED: 118 dB (IHF-A)

THD+N

Super Audio CD: 0.0006% (1 kHz, 0 dB) / CD: 0.0015% (1 kHz, 0 dB)

Digital Input Termina

Coaxial Digital x 1, Optical Digital x 1, USB-A x 2

Analogue Output Terminal

BALANCED x 1, UNBALANCED x 1
Support Variable Level Output

Digital output Terminal

Coaxial Digital x 1, Optical Digital x 1

System Port

System Control Input / Output (Φ3.5 mm Jack)

Headphone Output

Yes(Φ6.3 mm, 110 mV, 32 Ω VOL MAX))

USB-A Support Codec

WAV
- Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
FLAC
- Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
DSD
- Yes (2.8 MHz, 5.6 MHz, 11.2MHz)
AIFF
- Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
ALAC
- Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
AAC
- Yes (32, 44.1, 48, 88.2, 96 kHz / 16-320 kbps)
MP3
- Yes (32, 44.1, 48 kHz / 16-320 kbps)

Network Playback Support Codec

WAV
- Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
FLAC
- Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
DSD
- Yes (2.8 MHz, 5.6 MHz, 11.2 MHz)
AIFF
- Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
ALAC
- Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
AAC
- Yes (32, 44.1, 48, 88.2, 96 kHz / 16-320 kbps)
MP3
- Yes (32, 44.1, 48 kHz / 16-320 kbps)
